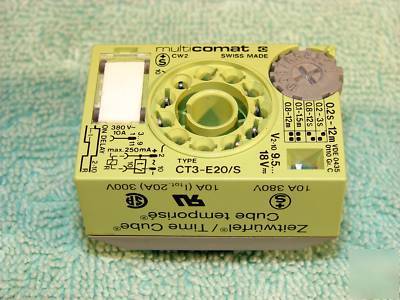

RELECO 11-Pin Time Cube "On Delay" Timing Module CT3-E20/S Operates 9.5VDC to 18VDC (12VDC Nominal) "On Delay" timer operation, adjustable from 0.2-seconds to 12-minutes. Note that this model was replaced by CT3-E30/S, which has a timing range of 0.2-seconds to 30-minutes. The only difference in operation is the shorter range of time delay adjustments for this model. Used with RELECO S3-S relay socket and RELECO C3-A30DX-12VDC but can be used with any standard 11-pin 12VDC relay. A standard 11-pin 12VDC relay plugged into the Time Cube will function as a time-delay relay (On Delay). (Releco 11-pin time cube CT3-E20/s (CT3-E30/s) was posted and is owned by: Lucy Mcdaniel) |
L.Mcdaniel@chicagopartsnetwork.com (Lucy Mcdaniel) for more information.
