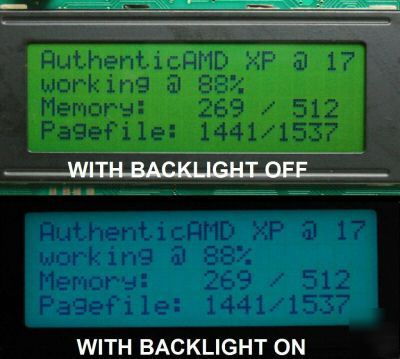

Black metal bezel is 1.562" x 3.860" LCD Display window is .987" x 2.993" Entire assembly (Display, PCB, ICs) is .415" thick. This LCD does not require a negative voltage on the contrast pin like some others do! The Backlight is type EL, not LED Electroluminescent (EL) backlights give a more uniform brightness level across the entire display window, which is why many prefer them over LED backlights. To power the Electroluminescent backlight from +5VDC, you will need an EL Lamp Driver or Inverting power supply. (Not included) top quality stores proudly participating in Doors2Stores (HD44780 based 4X20 lcd display with el backlight was posted and is owned by: Carmella Gilbert) |
