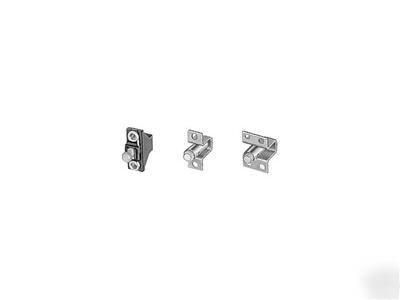

Allen Bradley AB NEMA W Heaters W56 The “Full Load Amperes†listed in the tables are to be used for heater element selection. For Type J and W Heater Elements, the rating of the relay in amperes at +40 °C (+104 °F) is 115% of the “Full Load Amperes†listed for the “Heater Type Numberâ€. For Type WL Heater Elements, the rating is 120% of the “Full Load Amperes†listed for the “Heater Type Number.†Refer to the motor nameplate for the full load current, the service factor, and/or the motor classification by application and temperature rise. Use this motor nameplate information, the application rules, and the “Full Load Amperes†listed in the proper table (see Index) to determine the “Heater Type Number.†(Allen bradley ab nema w heaters W56 was posted and is owned by: Josie Delgado) |
JosieDelgado@chicagopartsnetwork.com (Josie Delgado) for more information.
