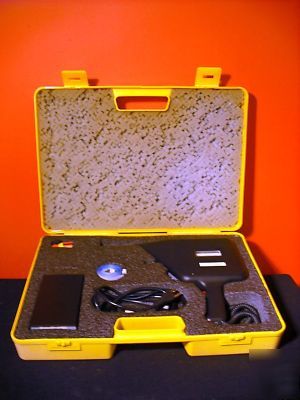

Schaffner NSG 431 Electrostatic Discharge System Electrostatic discharge (ESD) is the sudden and momentary electric current that flows between two objects at different electrical potential caused by direct contact or induced by an electrostatic field. The term is usually used in the electronics and other industries to describe momentary unwanted currents that may cause damage to electronic equipment * Test Type: Air , Contact Discharge * Minimum Air Discharge Voltage: 2 kV * Max. Air Discharge Voltage: 21 kV * Min. Contact Discharge Voltage: 2 kV * Max. Contact Discharge Voltage: 21 kV * High Voltage Accuracy: 10 % * Air Discharge Rise Time: 5 ns * Contact Discharge Rise Time: 5 ns * Discharge RC Network Type: Programmable * Discharge RC Network Values (std.): 150pF/150Ohm * Repetition Rate: Continuous , Single-shot * Test Finger(s) (std.): Ball * 1 NSG 431 Static Discharge Simulator (Schaffner nsg 431 electrostatic discharge system was posted and is owned by: Tonya Morris) |
