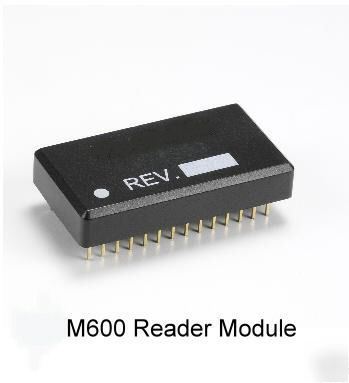

GAOM600 is an ISO15693 reader module that works with smart labels. Reader module has a read/write feature. Depending on the size of antenna, the optimum read distance could reach up to 200mm. GAOM600 read transponders with an operating frequency of 13.56Mhz (e.g. I-CODE SLI,Tag-It HF-I etc.), and it is a small size module with DIP28 pin package. GAOM600 is a best choice for system integrator to install into other devices, such as printers, terminals and handheld devices. * Support all ISO/IEC 15693 compliant smart labels (Tag-It HF-I, I-CODE SLI, LRI512,my-d vicinity etc) * Max 32 UID stocks for Anti-Collision (Default 32) * Operate time <24ms per one label * Reading distance up to 200mm (0.2W) with an ideal design antenna conditions * 10 Programmable I/O, IRQ, D/O for OEM * In-System Programmable firmware for OEM * Power Requirements: 5 VDC Stanby:70mA, Transmit:<80mA. A linear regulator is recommended Interface: RS232, UART, TTL:19200,n,8,1 * Card type:Tag-It HF-I, I-CODE SLI, LRI512, my-d vicinity etc * Maximum reading distance: Up to 200 mm with an ideal antenna conditions (0.2 Watt output) * Frequency: 13.56 MHz standard * RF Modulation/Subcarrier: 100% FM * RF Protocol: ISO/IEC15693 (1 out of 4) * Operate time: <24ms per one label * Dimensions: 39 (L) x 21 (W) x 11.6(D) mm * Operating temperature -10 ~ +60 Deg C * Operating relative humidity 10~90% * EPC (Electronic Product Code) supply Chain * Access control / Time recorder * Smart label printer and encoder You must have a return authorization number to return your product. Please contact D_robles@chicagopartsnetwork.com to obtain an authorization number, which shall be valid for 14 days after issued. This product is covered by a warranty of 12 months. You must have a return authorization number to service your product. Please contact D_robles@chicagopartsnetwork.com to obtain an authorization number. (GAOM600 rfid reader module was posted and is owned by: Dwight Robles) |
