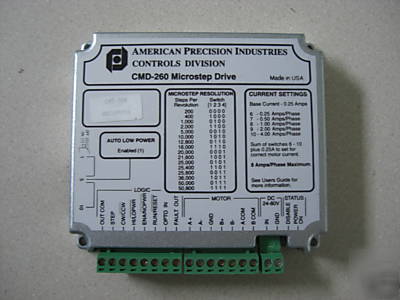

Conditions: Good, clean, tested and working well. -Speeds to 3,000 RPM continuous -Dip switch selectable resolutions up to 50,800 steps per revolution -Mid range stabilization prevents loss of motor synchronization -Dip switch selectable automatic low power feature -Optical isolation of all inputs and outputs provides high noise immunity -Full short circuit protection. -Accepts 24-80 VDC unregulated input -DIP switch selectable current settings from 0.25-5.0 Amps -Power and Fault LED indicators Two Phase, bipolar, constant current, MOSFET chopper, 20 KHz fixed 200, 400, 1000, 2000, 5000, 10000, 18000, 20000, 21600, 25000, 25400, 25600, 36000, 50000, 50800 steps / rev 24 to 80 VDC, +5VDC for logic 100 mA min 0.25 to 5.0 A/phase (Heatsink required over 4 amps) Phase-to-phase, phase-to-ground Internal air temp exceeds 140 F (60 C) TTL compatible. Optically isolated. Requires 0.5 sec min. width, 1 MHz max., pulse rate, steps on trailing edge Sinking output to OUTCOM, 5 to 24 VDC, 60mA max. Diable LED on DIP switch enabled. Current drops to 50% of selected value if no step pulses are received within 1 second Drive heatsink max. 140 F (60 C) Motor case max. 212 F (100 C) Storage -40 to 185 F (-40 to 85 C) For more photos, please click http:// /base/a/cyberlabtech/3576362/D8903534047197259671 Please see manufacturer links for more info http:// /newapi/apiftp/APIControls/PDF/apim-dist-cmd-260.pdf http:// /newapi/products/stepper_cmd260.html (Cmd-260 microstep api microstepping stepper servo motor was posted and is owned by: Justine Evans) |
