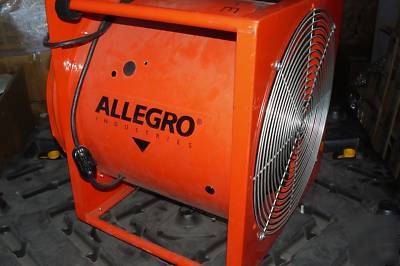

Glass Reinforced Polypropylene (PPG) three blade fan with aluminum hub Moving Fan mounted 1-5/8" from grill for safety Complete unit epoxy powder coated in Safety orange Interchangeable flange for intake and exhaust side mounting 18 Gauge cold rolled steel housing, Bolted motor mount construction. Integrated carrying handles on four sides, Steel/chrome plated grill Equipped with four (4) rubber feet, Stackable design, Can be used with Adaptor Reducer (P/N: 9600-50) to be used.with 8 ducting HP, 115V AC 60 Hertz, Single , UL Listed CSA Certified Cord: 6.5 12/3 AWG, SJTW 90C 300V Medium Duty, Plug: NEMA 5-15 (Grounded three-prong) Length Width Height Weight 14 18 18 53 Lbs FLOW RATES: (flow rates meas. with 15 of 16 ducting) Free Air One 3400 CFM (1) 90 degree bend 2800 CFM Two (2) 90 degree bends 2300 CFM (Allegro 9515 axial ventilation blower, 16" standard out was posted and is owned by: Shelly Doyle) |
shelly.doyle@chicagopartsnetwork.com (Shelly Doyle) for more information.
