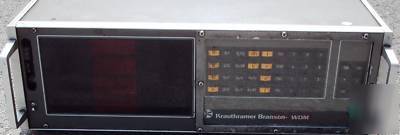

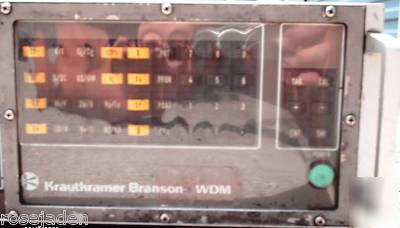

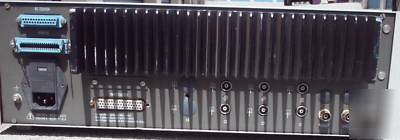

KrautKramer Branson WDM-V unit used for for measuring and controlling the wall thickness of plastic pipes producing plastic pipes by an extrusion process in which the wall thickness of the plastic pipe is controlled by the takeaway speed at which a soft plastic pipe is removed from a metal sizing sleeve. To measure the wall thickness of the soft plastic pipe advancing through the sizing sleeve for regulating the takeaway speed, a transducer emits ultrasonic sound through a plastic transmission line mounted in or on the sizing sleeve and interposed between the transducer and the plastic pipe. The time interval between the emission of a sonic pulse by the transducer and the detection of a reflected sonic pulse from the inner wall of the advancing soft plastic pipe is a function of the wall thickness of the plastic pipe in a soft plastic state. For tech support or general questions feel free to contact our tech department @ (***)-521-6097. ask for Jennifer. Thank You. (Krautkramer branson wdm-v ultrasonic pipe inspector ndt was posted and is owned by: Leona Joseph) |
LJoseph@chicagopartsnetwork.com (Leona Joseph)
for more information.
