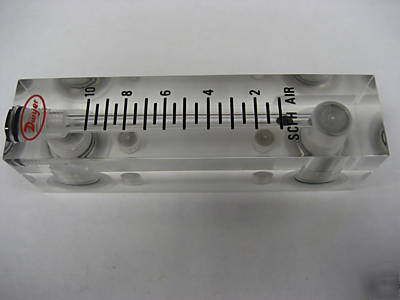

This is a New Dwyer Visi-Float Flowmeter. This part was purchased from another companies liquidation sale. The part is in good condition in factory packaging. RANGE 1-10 SCFH AIR Service: Compatible gases and liquids. O-ring: Buna-N (Fluoroelastomer available). Metal Parts: Brass standard, stainless steel optional. Float: Stainless steel, black glass, aluminum, K Monel depending on range. Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150 F (65 C); 150 psig (10 bar) @ 100 F (38 C). With Valve: 100 psig (6.9 bar) @ 120 F (48 C). Accuracy: VFA = 5% of full scale; VFB = 3% of full scale. Process Connection: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves. Scale Length: VFA 2" typical length; VFB 4" typical length. Mounting Orientation: Mount in vertical position. Weight: VFA: 4.0-4.8 oz (.11-.14 kg); VFB: 7.2-8.8 oz (.20-.25 kg). (Dwyer vfa-4 VFA4 visi-float flower meter was posted and is owned by: Patrice Mcguire) |
