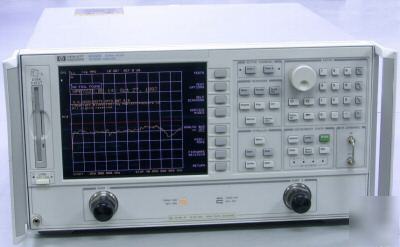

The 8722D network analyzer brings together an unbeatable combination of speed, performance and ease-of-use features to solve your measurement needs. This combination is ideally suited for today's R&D and high-volume manufacturers in the communications, aerospace/defense and consumer electronics industries. Faster CPU and wider 3.7 and 6 kHz bandwidth IF filters provide exceptional sweep speed, error correction, register recall and data-transfer rates. Reduce measurement time by optimizing measurement parameters with swept list mode. Simultaneously display all four S-parameters while tuning devices (available Q398). Quickly record or print all four S-parameters for data archiving. Enhance the visibility of displayed data by adding an external VGA monitor. Improve product yields for noninsertable devices with adapter-removal calibration. A four-time increase in nonvolatile memory allows more complex calibration data and instrument-state storage and recall. Touchstone -compatible (S2P) format provides fast data transfers for new design and simulation applications. * 3.5 mm Test Port Connector * Fast-sweeping, built-in synthesized source (sweep range: 20 dB) * Vecter receiver, error correcton, time domain * Up to 105 dB dynamic range * 007: Mechanical transfer switch: replaces the solidstate transfer switch with a mechanical transfer switch. Increases test port power and dynamic range by 5 dB * 010: Time-domain capability: allows time-domain measurements (Agilent hp 8722D 40 ghz 40GHZ network analyzer 007 010 was posted and is owned by: Melissa Henderson) |
