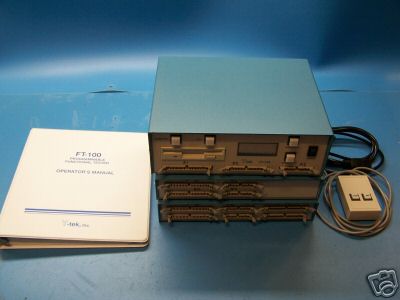

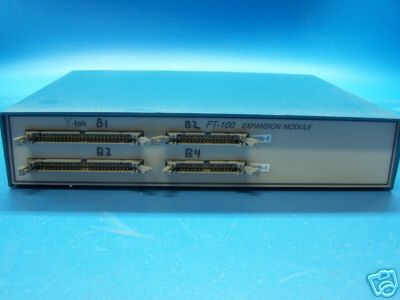

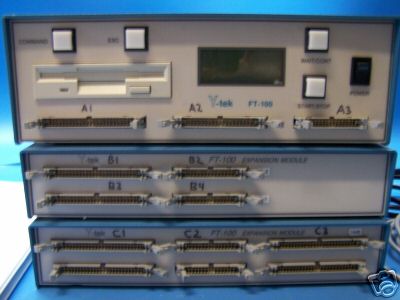

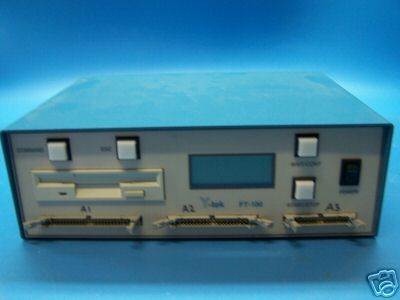

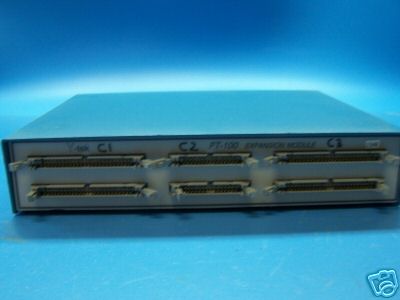

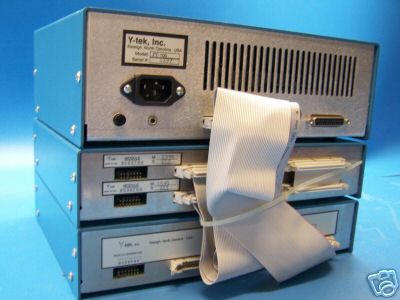

If you have any questions, please be sure to contact me. Y-Tek Programmable Functional Tester Power Supply Lines +5,0 Volt @ 1 Amp Digital Lines 40 Inputs TTL compatible switching levels 40 Outputs rail to rail output (0-5 Volts) External Trigger 1 external trigger for one digital input port Analog Lines 8 Inputs (0-10 Volts, or +/-5 Volts) 12 bit resolution 7 Outputs (0-10 Volts, or +/-5 Volts) (4 Outputs @ 12 bit resolution, 3 Outputs @ 8 bit resolution) Control Lines START / STOP – Start and Stop the test program WAIT / CONT – Pause a running program TRIG – External trigger line Dual 1535 Expansion Unit Specifications: Analog Lines 120 inputs, 12 bits of resolution, +/-10 Volts Range Single 1548 Expansion Unit Specifications: The FT-100a is a programmable functional tester, capable of stimulating and monitoring digital and analog circuits or assemblies. Through its unique and simple programming language, the FT-100a provides virtually unlimited control of its outputs and extremely easy access to its inputs. Although the applications are almost limitless, the FT-100a is most commonly used for functionally testing digital and analog PC board assemblies. After connection of the digital and analog I/O lines to the unit under test, the FT-100a can simulate various operating environments and test for proper responses. Because the I/O is so easily controlled, the unit under test may be exercised in "worst-case" situations as well as the normal operating environment. This is all done in a fully automated manner, providing a very fast and comprehensive test, while requiring a very low skill level for test operation! Test results may be handled in many different ways: displayed to the operator, hardcopy printout, stored on floppy disk, downloaded to another computer or network, etc.. The computational power of the FT-100a allows a very thorough analysis of test results, if desired. (Y tek programmable functional pc board tester was posted and is owned by: Terri Gill) |
T-Gill@chicagopartsnetwork.com (Terri Gill) for more information.
