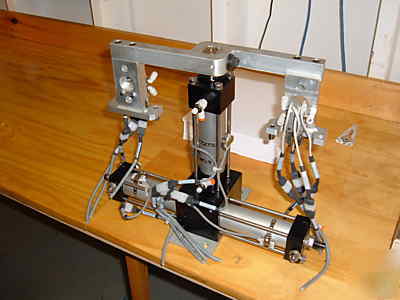

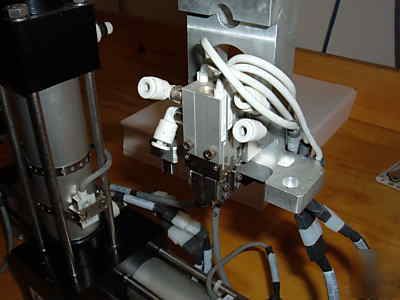

Great find for the automation or machinery builder. This is a pneumatic module removed from a custom automation assembly workcell. The top arm has small SMC mechanical grippers mounted on each end. There is pair on each end so there are (4) SMC MHZ2-6D2 grippers. The pairs are at a span of about 11 inches apart. The vertical air cylinder the top arm is mounted to provides about 2" of vertical lift. The bottom cylinders lying horizontal provide the 180 degree rotate motion. So, when plumbed and controlled accordingly, this device will pick, lift, rotate 180 degrees, and come down and release, while simultaneously the other end is coming down to the pick point so you can double your throughput speed. Made by ROTAMATION. Sensors, flow controls, and cables as shown in photo.
