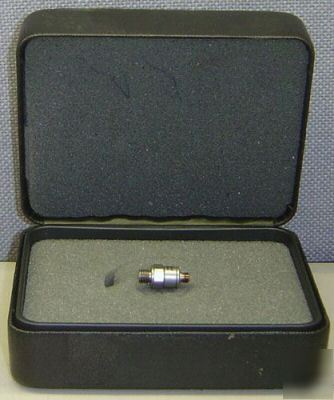

Dytran 3200B LIVM High Shock Accelerometer Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Dytran and may vary slightly due to upgrades, options or revisions this unit may or may not have. Link to Datasheet: Dytran 3200B Accelerometer (PDF) Dytran manufactures a broad range of accelerometers serving industries such as Aerospace, Automotive, Medical, Laboratory, Commercial and Industrial. Specifications per Model 3200B: Sensitivity (Nom.) [2]: 0.05 mV/G Discharge Time Constant, Nom.: 1.0 second Low Frequency -3db Point, Nom.: .16 Hz Low Frequency -5% Point: .50 Hz Transverse Sensitivity, Maximum: 3.0% Output Impedance, Nom.: 100 Ohms Output Voltage Bias, Nom.: +11 VDC Supply Current Range [4]: 2 to 20 mA Compliance (Supply) Voltage Range [4]: +18 to +20 VDC Operating Temperature Range: -60 to +250°F Size (Hex x Height) [5]: 3/8 x .64 inches Connector, Top Mounted: 10-32 Micro-Coaxial Material, Housing/Connector: 17-4 PH Stainless Steel Mounting Provision, 3200B/3200BT/3200BM: 1/4-28/10-32/M6x1.0 integral stud Isolation, Case to Mounting Surface: 10 megohms [1]Model series 3200B feature 1/4-28 mounting stud. All other characteristics are identical. [2] Measured by impacting against calibrated force sensor. NIST traceable. [3] Percent of full scale or any lesser designated full scale range, zero-based bet fit straight line method. [4] Power only with Dytran or Dytran approved current source type power unit. Do not supply power without current limiting. You will destroy the integral electronics. [5] Height measured from mounting surface to top of connector. Integral mounting studs are .20 in. long. (Dytran 3200B livm high shock accelerometer was posted and is owned by: Gerald Baldwin) |
