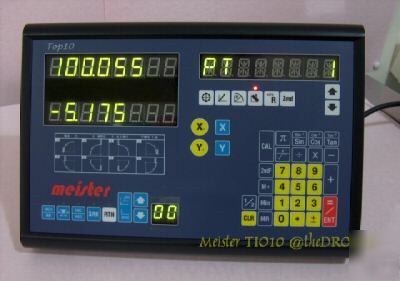

Meister TOP10 2 Axis DRO complete with scales for Vertical/Turret Mill & Bore Includes TWO (2) pieces of linear glass scales with travel stroke from 100 mm to 900 mm. (Just for information: Overall length of scale = Travel + 128 mm) Free Postage !! Free Postage !! One year warranty from factory. Display box swivel mounting arm, dust cover and English (or French) manual. Free extruded aluminum coolant covers. Grizzly, Gambin, Huron, TOS vertical / horizontal milling machines. This is a MSC mill with Meister TOP10 DRO. Photo by Charles. * HALF(1/2) - selected axis display is divided by 2 * Absolute/Increment Co-ordinate Interchange * Recall - recall the last X and Y positions. * RTN - pause to go to normal operation or return to finish the job. Put the DRO to 'sleep' during break time. * Mechanic Zero Position Memory: re-establish workpiece zero position after power failure. * Holes in a straight or oblique line. * Preset X and Y dimensions. This is a Chinese mill. Photo by Derick, Australia. * Response Speed: 60m/min (198.6feet/min) * Resolution: 0.005mm/0.0002" * Resolution selectable to match 1 um and 10 um linear scales. * Quantizing error: +/- 1 count * Power Source: AC 110 - 220V, 50 - 60 Hz * Auto-switching power supply. * Temperature range: Operating 0 ~ 40 deg C * Display: 8 digits LED display; green color * Dimension: 10.25" x 7.0" x 2.0" (260 x 180 x 50 mm) * Grating pitch: 0.02mm (50LP/min). * Accuracy: 0.005 mm or 0.0002"(at 20 deg C). * Every scale has ABS reference marks. * Response Speed: 60m/min or 40ins/sec * Output Signal: Two square wave signals. TTL output. * Standard 3 metres armoured cable. * Model: Meister MS4 Standard type. Scales are make to standard travel length: * When ordering linear scales, please specifiy the measuring or travel length. * SIim Scale MS6: has slim alum. body so that it can fit into tight space. * Ultra scale Model MS2: 1050, 1150, 1250, 1350, 1450, 1550, 1650, 1850 and 2050mm. Ultra scales have thicker alum. frame and they are designed to withstand vibration. * Please email for more information if you like to know more about the MS6 and MS2 models of linear scales. This is a photo of TOP10 3-Axis DRO .. on a Bridgeport mill. Photo by Summerton, Australia. * Delivery is about 1 ~ 2 weeks upon dispatch (assume no delays in transit). * If you do not receive the item by the estimated time please email to me and I will follow up. (Meister TOP10-2 digital readout dro mill bore 9X48 9X42 was posted and is owned by: Nikki Cochran) |
Nikki.cochran@chicagopartsnetwork.com (Nikki Cochran) for more information.
