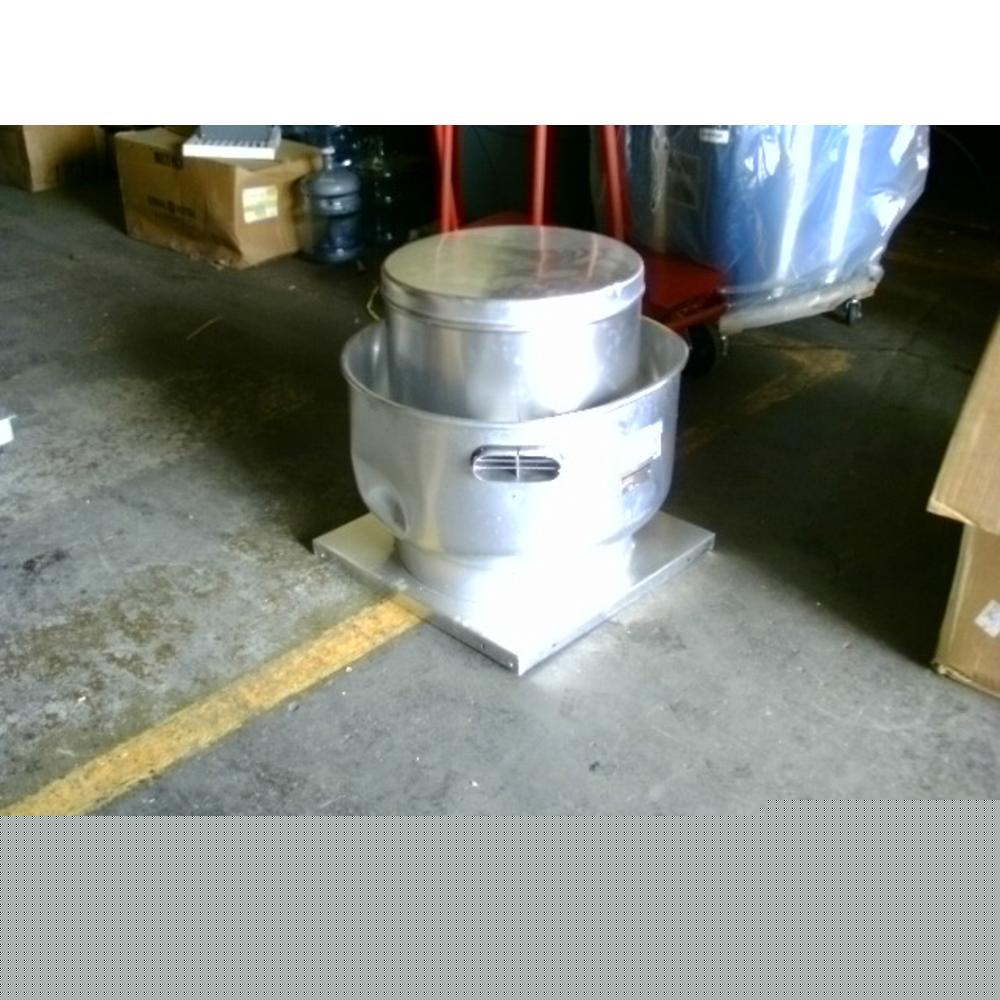

USED IN RESTAURANTS, SCHOOLS,COMMERCIAL AND INDUSTRIAL APPLICATIONS TO EXHAUST CONTAMINATED AIR FROM RANGE HOODS, CENTRIFUGAL UPBLAST DIRECT DRIVE, CFM @ 0.000-IN SP: 2065, @ 0.250-IN SP: 1864, @ 0.500-IN SP: 1605, 11.0 SONES @ 0.250-IN SP,ONE-PIECE ROLLED ALUMINUM WINDBAND FULLY WELDED TO THE BASE CREATES A LEAKPROOF SEAL BETWEEN THE VENTILATOR AND THE MOUNTING SURFACE, INTERNAL MOTOR, DRIVE FRAME, AND BLOWER WHEEL ARE ISOLATED FROM THE MOUNTING BASE BY THE USE OF INDEPENDENT NEOPRENE STUDS,NO METAL-TO-METAL CONTACT, GREATLY REDUCING OVERALL NOISE. MOTOR COMPARTMENT IS ISOLATED FROM THE CONTAMINATED AIR STREAM AND IS COOLED BY OUTSIDE AIR THAT IS PULLED IN THROUGH AN OVERSIZED BREATHER TUBE BY THE SPINNING ACTION OF THE WHEEL, UL AND C-UL LISTED, HOUSING MATERIAL: SPUN ALUMINUM, MOTOR HP: 1/4, VOLTS: 115, HZ: 60, PHASE: 1, WHEEL DIA: 14-3/4", WHEEL MATERIAL: ALUMINUM, DIMS: 28-1/2" H X 29-1/4" DIA, WEIGHT: 44 LBS
(Dayton 1/4 hp exhaust ventilator 115 volts 160315 was posted and is owned by: Eula Ryan) |
e-ryan@chicagopartsnetwork.com (Eula Ryan) for more information.
