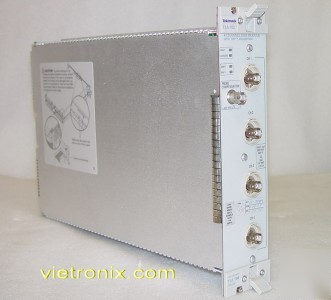

Tektronix TLA7E2 4Ch 1GHz, 5GSa/s Oscilloscope Module Unit Included: Tektronix TLA7E2 4Ch 1GHz, 5GSa/s Tektronix TLA7E2 Oscilloscope, Digital: 1GHz,5GSa/s,4ch (Module - proprietary interface/bus) The Tektronix TLA7E2 oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Tektronix TLA7E2 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time. Form Factor Module (proprietary interface/bus). Bandwidth 1 GHz. Number of Channels 4 ch. Simultaneous Maximum Sampling Rate/ch 5 GSa/s. One ch only max sampling rate 5 GSa/s. Max Record Length 15000 pt/sec. Min Vertical Sensitivity 10 mV/div. Maximum Vertical Sensitivity 100 V/div. Input Impedance 1 MOhm. Input Impedance (alternate) 50 Ohm. Input Coupling AC,DC,GND. Maximum Input Voltage 300 Vrms. Timebase accuracy 0.01 %, Trigger Modes Auto,Edge,Glitch,Normal,Pulse. Minimum Glitch Trigger (Tektronix TLA7E2 4CH 1GHZ, 5GSA/s oscilloscope module was posted and is owned by: Winifred Holmes) |
