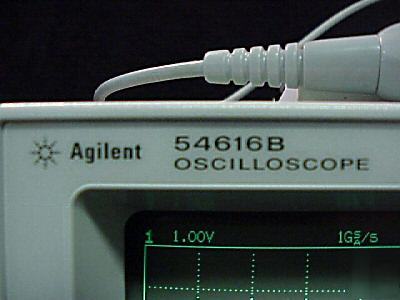

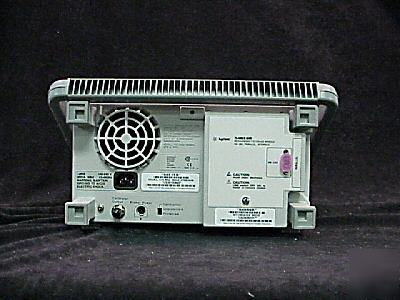

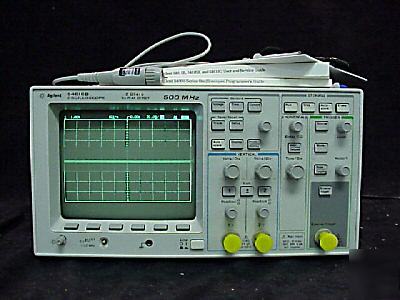

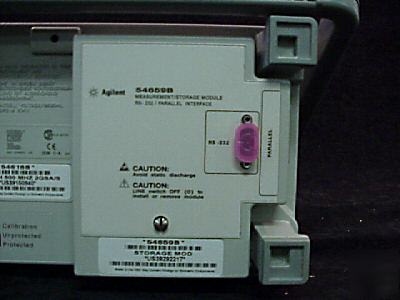

Option installed: 54659B Measure / Storage Module with RS-232 and Parallel Interface Tested and Working within Manufacturers Specifications The Agilent 54616B oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Agilent 54616B oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts†of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time. Performance Characteristics of the 54616B Simultaneous Maximum Sampling Rate/ch One ch. only max. sampling rate Sold with 7 day right of return if unsatisfied. All purchases outside of North America must be made by wire transfer only. Call BRL Test for all of your test equipment needs Be sure to add me to your favorites list! It's the service after the sale that counts! SUPERIOR PEOPLE - SUPERIOR SERVICE - SUPERIOR EQUIPMENT - SUPERIOR COMPANY - SUPERIOR SUPPLIER (Agilent 54616B oscilloscope 500MHZ 2GS/s 2CH opt 54659B was posted and is owned by: Virginia Robertson) |
virginia-robertson@chicagopartsnetwork.com (Virginia Robertson) for more information.
