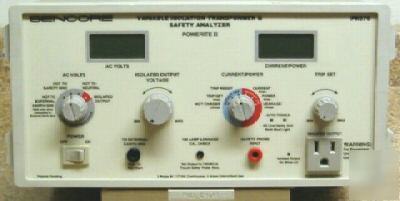

Sencore PR570 "Powerite II"™ Variable Isolation Transformer / Analyzer I apologize for any inconvenience this has caused. Thank you. Identify And Troubleshoot Virtually Any AC Supply Problem Fast... With The PR570 "Powerite II"™ Using Sencore's PR570, You can conquer AC power source problems plus startup, shutdown, and regulator failures with a variable 0-140 volt AC supply. The PR570's AC line monitor gives you confidence your AC line is right with exclusive tests. Simultaneous digital displays of voltage and current draw help prevent parts damage and wasted time. The PR570's isolated output reduces shock hazards and prevents damage to the chassis and your test equipment. The adjustable current trip feature minimizes expensive parts damage by automatically removing AC power when excessive current is being drawn - especially helpful in power supply and high current circuits. Plus, the safety leakage test let's you test for unsafe leakage currents. This item has very little use on it and is in near-new condition.. It has been fully tested and is guaranteed not to be DOA. The retail price of this unit is $1395.00 Includes A NEW Leakage Test Probe ! Don't miss out on this high quality item ! PR570 Main Features Checklist: Insure your safety and the safety of your test instruments whenever servicing electronic products Conquer AC power source problems plus startup, shutdown, and regulator failures with a digitally accurate and variable 0-140 volt AC supply Have complete confidence your AC line is right with the AC line monitor An adjustable current trip feature minimizes expensive parts damage by automatically removing AC power when excessive current is being drawn Watch voltage levels and current draw with simultaneous current and voltage displays Test AC outlets with an exclusive receptacle checker to ensure correct earth grounding for the highest level of safety PR570 Condensed Specifications: Isolated Output - VOLTAGE: 0-140 VAC typical at 117 VAC input, continuously variable. CURRENT: 3 amps continuous; 3-4 amps, 470 watts maximum intermittent use (5 minutes on, 5 minutes off). OUTPUT LOADING: Less than 12 volts drop in output with 3 amp load at 120 VAC. AC Volts Functions - AC LINE VOLTAGE TESTS: Measures and displays the selected voltage: Hot to External Earth Ground, Hot to Safety Ground or Hot to Neutral. RANGE: 0-150 VAC. ACCURACY: ±3% reading ±2 counts, calibrated at 117 VAC. RESOLUTION: 1 volt. PROTECTION: 240 VAC. ISOLATED OUTPUT VOLTAGE: Measures and displays voltage at isolated output. Same as Line Voltage Tests. Output Current Monitor - MEASUREMENT: True Power. RANGE: 0 to 470 watts. ACCURACY: ±5% of reading, ±2 counts. RESOLUTION: 1 watt. Adjustable Current Trip - RANGE: 0-4 amps. ACCURACY: ±10% of reading, ±20 mA. RESOLUTION: Adjustable in 10 mA increments. TRIP TIME: 0.3 seconds max. with 200% overload. Hot Chassis Test - MEASUREMENT: Ties high and low lead of primary together and measures leakage to exposed metal with power off. RANGE: 0 to 1999 µA. ACCURACY: ±3% of reading, ±2 counts. RESOLUTION: 1 µA. PROTECTION: 150 mA RMS, 150 V max. Safety Leakage Test - MEASUREMENT: Referenced to either side of isolated output jack. (Automatically toggles high and low line and opens and closes safety ground and displays highest reading.) RANGE: 0 to 1999 µA. ACCURACY: ±3% of reading, ±2 counts. RESOLUTION: 1 µA. PROTECTION: 150 mA RMS, 150 V max. CAL CHECK: 100 µA, ±3% of reading, ±2 counts with isolated output at 120 VAC. Protection - AC INPUT: 4 amps, type 3AG slo-blo fuse. ISOLATED OUTPUT: Adjustable current trip, 1 to 4 amps. AC Power : 105-125 VAC 60 Hz, 4 amps idle current with no output load. Size : 6 x 11.5 x 12 inches. HWD Size : (15.2 x 25.4 x 29.2 cm). Weight : Approximately 22 lbs. (Sencore PR570 POWERITE2 variable isolation transformer was posted and is owned by: Enrique Rasmussen) |
enrique.rasmussen@chicagopartsnetwork.com (Enrique Rasmussen) for more information.
