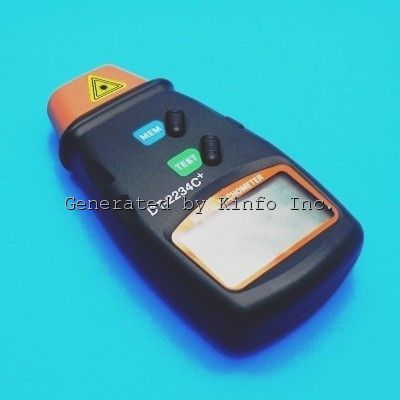

LCD Digital Laser Tachometer 2.5-100000 RPM (DT-2234C+) Model: DT2234C+ (Digital Laser Tachometer) Precise non-contact tachometer Display : 5 digits, 18 mm (0.7") LCD , with function Wide Measuring range from 2.5 to 100,000 RPM The Last Value, Max. Value, Min. Value will be stored into the memory automatically, can be obtained by pressing Memory Call Button. 1. High visible LCD display gives RPM reading exactly with no guessing or errors & saves battery energy. 2. Used the exclusive one chip Micro-Computer LSI circuit & crystal time base, offer the high accurate measurement & fast sampling time. 3. Use of durable, long lating components, inluding a strong, light weight ABS plastic housing , assures almost maintenance free performance for many years. 4. The housing cabinet has been carefully shaped to fit comfortable in either hand. Resolution : 0.1 RPM (<1,000RPM), 1RPM (>=1,000RPM). Accuracy(23+/-5degree C) : +/-(0.05%+1 DIGIT) -Spec. tested under the environment RF Field Strength less than 3V/M & frequency less than the 30 MHz only Time base : Quartz crystal , 4.194 MHz Operating Temp. : 0-50 degree C ( 32-122 degree F) Operating Humidity : Less than 80% R.H. Power Consumption : Approx. DC 35mA(LCD) , 30mA (Laser) 1. 1x Digital Tachometer (DT-2234C+) 2. 1x Bag and 1x 6F22 9V Battery 3. Reflecting tape marks (600mm) and 1x Operating Manaul. (Non-contact digital laser tachometer wheel rpm meter was posted and is owned by: Briana Morgan) |
