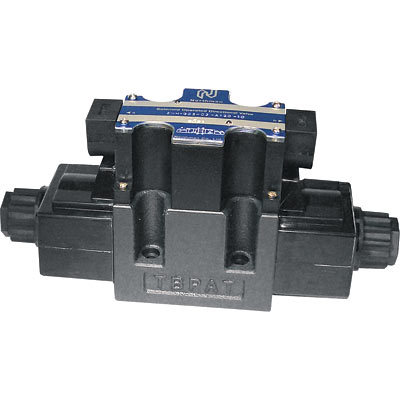

Northman Fluid Hydraulic Directional Control Valve -New This industrial hydraulic directional control valve conforms to the National Fluid Power Association (NFPA) D05 mounting pattern for subplate or manifold mounting. As a four-way valve, it is commonly used to extend and retract a double-acting hydraulic cylinder or to control a rotary hydraulic motor. As a spring-centered valve, it will remain in its home position with A, B and T ports commonly connected until shifted electrically to one of two positions to either extend or retract a cylinder, returning to home when the power is removed. Its molded coils are moisture and dirt resistant. Indicating signal lights, manual override, bolt kit and electrical junction box are standard. The valve mounts on Northern Tool Subplate 203321 with 3/8in. NPT ports or 203331 with 1/2in. NPT ports. GPM: 26.4, Max. PSI: 4,500, Directional Control: 4-way, 3-position, Volts: 120 AC, Indicator Light: Yes Hydraulic Directional Control Valve Spring Centered Float Center Spool Type Molded Coil Manual Override Subplate or Manifold Mount, NFPA Size D05 Bolt Kit Included Mounting Subplate Available Separately Modular Pressure and Flow Control Valves Available Separately (New northman fluid hydraulic directional control valve - was posted and is owned by: Antoinette Fitzgerald) |
