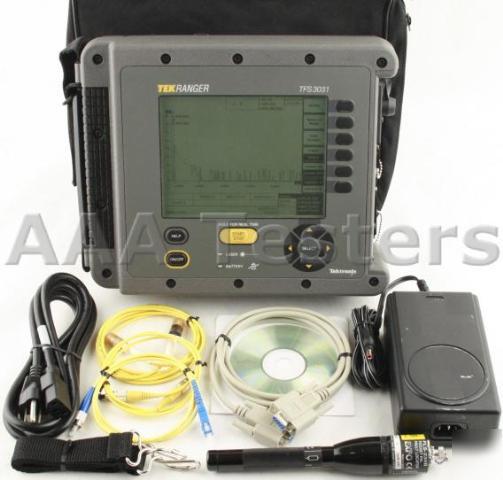

* Tektronix TFS3031 Tekranger SingleMode OTDR * Interchangeable FC Connector For Source * Tektronix Target 1 OTDR Trace & Emulation Software Tektronix TekRanger TFS3031 Singlemode 1310nm & 1550nm OTDR Includes EXFO FLS-235B Pocket VFL (A $500 Value!), Carrying Case w/ Strap & Full Accessories! TekRanger TFS3031 mini-OTDR (optical time domain reflectometer). The product features IntelliTraceTM, a new patented technology for unprecedented accuracy and ease of use in testing fiber optic networks. TekRanger, which replaces the popular FiberMiniTM, adds an optional disk drive and is the first mini-OTDR with both singlemode and multimode test capability in one instrument. "The accelerating deployment of broadband networks is driving a need for rugged test tools that are smaller, faster, and more intelligent," said Ken Ditto, TekRanger product manager at Tektronix. "TekRanger answers this need in data, cable TV and telephony applications." IntelliTrace Includes Enhanced Acquisition and Display IntelliTrace provides complete and accurate results by adjusting acquisition parameters, such as pulse width and number of averages, as it automatically analyzes a fiber link. As a result, it more accurately measures small and closely spaced events, even over long distances. Near-in events are also captured because of TekRanger's superior dead zone performance, allowing one-button testing from five meters to more than 100 km. IntelliTrace features enhanced display of acquired data, with events such as splices and excessive bends in the cable automatically marked and viewable in table format simultaneously with the waveform. Operators can customize the event table, add comments, and eliminate or add events. TekRanger also features a range of user language options, including English, Chinese, Japanese, French, Portuguese, Spanish and German. TekRanger is the first mini-OTDR to offer the capability to test both singlemode and multimode fiber with the same instrument. The unique two port design, which allows users to test multimode and singlemode fiber without having to change modules, makes the TekRanger very durable. Designed for Optimal Performance in the Field Like its predecessor, the TekRanger mini-OTDR is rugged, splash-proof and shock-resistant. It weighs only nine pounds (4.2 kg) and measures 11.25 in. x 9.5 in. x 4 in. (29.2 cm x 24.1 cm x 11.4 cm). TekRanger operates using an internal, eight-hour NiCAD battery or standard "C"-size alkaline batteries. An enhanced power management system includes a battery level indicator, low-battery warning and the ability to be recharged from a vehicle. * Files are Compatible with FiberMaster OTDR, TARGET1 , PC * Readout Resolution: 25 cm minimum. * Loss resolution: 0.001 dB. * Distance Measurements: Meters, feet, miles. * OTDR Distance Range Settings: Singlemode: 1 to 240 km. * Distance Resolution (IntelliTrace ): 1.25 m to 40 m. * Hardware Scale Accuracy: *3 - * Horizontal Time Base: 1.25 m 1.25 m 10-5 x distance. * Vertical Linearity: 0.02 dB/dB. * System Measurement Accuracy: *4 - * Reflectance Accuracy: Exceeds Bellcore GR-196-CORE*2. * Measurement Time (Auto): Less than 3 minutes (20 dB loss). * Dead Zone*2:Singlemode/ Loss: 5m, Loss Measurement: 15m * Display: High resolution 640 x 480; 7.2 in., high contrast; operator switchable backlight. * Selectable Pulse Widths: 1 m, 5 m, 10 m, 20 m, 50 m, 100 m, 200 m, 500 m, 1000 m, 2000 m. * Memory Capacity:100 traces in internal memory (typical). * 3.5 in. floppy disk drive (optional). * Output Ports: RS-232 serial; Centronics parallel printer, mini-DIN (keyboard). * Power Options: AC (100 to 240 V, 50 to 60 Hz). DC Operation: 9 to 16 VDC. * Internal NiCad rechargeable battery (4 hours of operation depending on operating mode). * Laser Safety: Class 1 per 21 CFR 1040, Class 1 per CEI/IEC 825-1: 1993, * Options 3T, 4T and 7T are Class 1, * Option 6T is Class 2, Environmental (without internal disk drive) * Temperature Range: Operating: -10 C to +40 C, Nonoperating: -20 C to +60 C, * Storage Temperature - -20 C to +60 C. * Relative Humidity: 5% to 95% (noncondensing). * Field Usage*2: Shock, water and dust resistant, Shock*2 - 30 in. drop., Safety - UL 3111-1, CSA 1010.1, * Physical Characteristics:11.5in (W) x 4.5 (H) x 9.5in (D) (Tektronix tekranger TFS3031 sm fiber optic otdr vfl was posted and is owned by: Concepcion Rush) |
