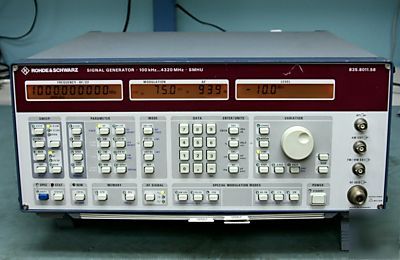

* I/Q Modulator for Any Phase and Amplitude Modulation (PSK, QAM, ASK, etc.), Modulation Bandwidth DC to 200 MHz * Second, Coherent Carrier for Simple I/Q Demodulation * Broadband Amplitude Modulation for TV Applications * Broadband Frequency Modulation for Satellite Communications, Radar, and Video Applications * Optional Coders for Generating Modulating Signals for Digital Radio Networks to Relevant Standards (GSM, NADC, DECT, CDMA) * Frequency Hopping - 4800 Stored Frequency and Level Settings * Parallel Bus Interface for External Addressing of Memories * Setting Time <1 ms for Frequency-agile Systems * High Spectral Purity for Out-of-channel Measurements and LO Applications * Minimum Frequency: 0.1 MHz * Maximum Frequency: 4230 MHz * Frequency Switching Time: 4 ms * Maximum Output Power: 19 dBm * Minimum Single-Side-Band Noise: -112 dBc/Hz * Maximum Single-Side-Band Noise: -94 dBc/Hz * Harmonics (noise): -30 dBc * Non-harmonics (noise): -74 dBc * External Modulation Inputs(Types): None * Programmability/Connectivity of the SMHU58 - User Interface: Proprietary - Ports to Peripheral Devices: Parallel (Rohde & schwarz SMHU58 rf generator 4.2 ghz was posted and is owned by: Edgar Austin) |
eaustin@chicagopartsnetwork.com (Edgar Austin) for more information.
