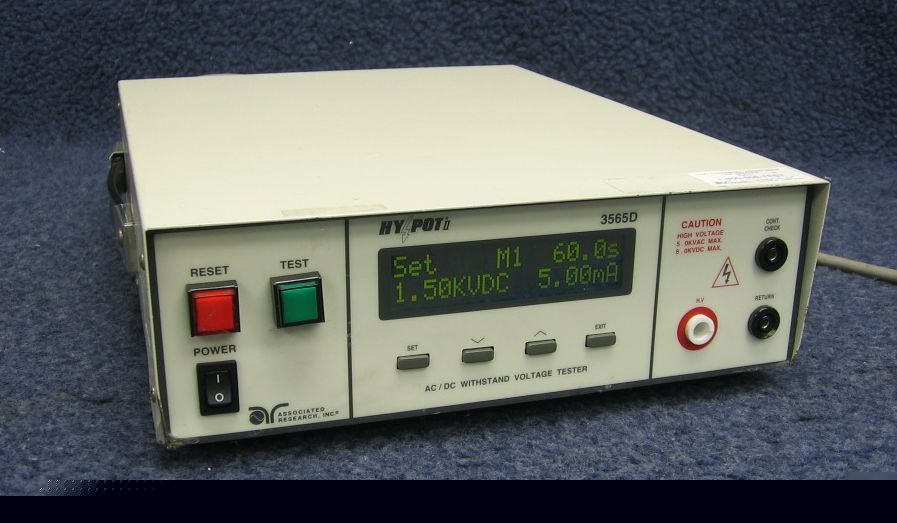

HIPOT II 3565D ASSOCIATED RESEARCH AC/DC TESTER HYPOT HYPOT II 3565D ASSOCIATED RESEARCH AC/DC VOLTAGE Input: /230V selectable, ± 15% variation 47-63 Hz Fuse: VAC, 230VAC - 2A fast acting 250VAC Output: Rating: AC 0-5000V, 2V/step, 12 mA DC 0-6000V, 2V/step, 5 mA (3565D & 3570D) Regulation: ± (1% of output + 5V) Accuracy: ± 2% of Setting + 5V Output frequency: DC and 50/60 Hz selectable Wave form: Sine wave, Distortion: < 2% THD Dwell time setting: and 0.2-999.9 second, 0.1 second/steps Ramp time setting: .2 - 999.9 seconds in 0.1 second increments (0 ramp setting = 0.1 seconds fixed) Fail settings: AC mode - High limit: 0.10 - 12.00 mA, 0.01 mA/steps, DC mode - High limit: 0.02 - 5.00 mA, 0.01 mA/steps Ammeter (4 digits) - Range: AC 0.10 - 12.00 mA, DC 0.02 - 5.00 mA, Resolution: .01 mA / Voltmeter (3 digits) Range: AC 0.00 - 5.00 KV, DC 0.00 - 6.00 KV, Resolution: .01 KV Timer display range: .0 - 999.9 seconds The complete solution for your drop-off and econsignment business! (Hipot ii 3565D associated research ac/dc tester hypot was posted and is owned by: Twila Livingston) |
