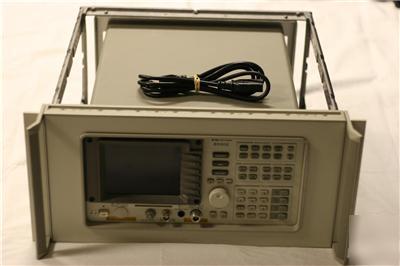

Used - In Excellent Condition Box Dimensions: 32L X 24W X 24H Weight 50LBS Battery Life: 8 Years @ 25C, 1 Year on 55C This unit is in a rackmount chasis, and has option 041 HPIB and Centronics Interfaces. OPT 041 = GPIB and Parallel Interfaces This unit has been checked out by a lab and functions like it should. Agilent 8591E Portable Spectrum Analyzer, 9 kHz to 1.8 GHz The Agilent 8591E is an easy-to-use RF spectrum analyzer that offers a wide range of performance, features, and optional capability to meet your measurement needs. Downloadable measurement personalities combine with optional plug-in performance to provide tailored solutions for your application. Perform complex tests simply and quickly with measurement personalities that support applications like cable TV/broadcast, component test, electromagnetic compatibility, lightwave, and wireless communications. Resolution bandwidth range : 30 Hz to 3 MHz (10 Hz Nominal) Average noise level(30 Hz-RBW) : 130 dBm Optimum dynamic range (2nd/3rd Order) : 77 dB/90 dB Relative frequency response : 1.0 dB Calibrated display range : 70 dB Amplitude range : 130 dBm to +30 dBm Phase noise (30 kHz Offset, 1 GHz) : 105 dBc/Hz (Agilent 8591E portable spectrum analyzer 9KHZ-1.8GHZ was posted and is owned by: Luann Chan) |
l-chan@chicagopartsnetwork.com (Luann Chan) for more information.
