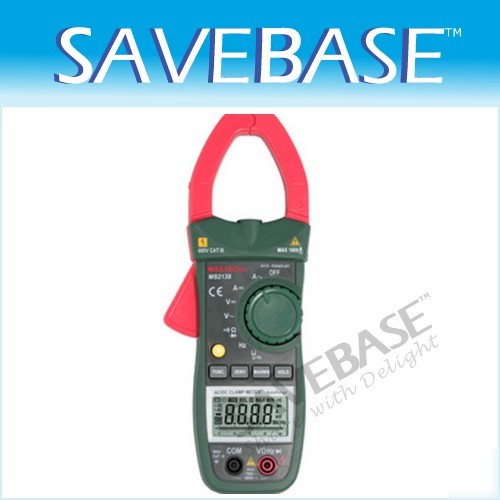

AC DC Clamp Meter Electrical Current Voltage MS2138 Conform to the IEC1010-1 & IEC1010-1-032 standard Display: 3999 counts and 42 segments bar graph DCV: 4/40/400V 0.8%, 1000V 1.0% ACV: 4/40/400V 1.0%, 700V 1.2% ACA: 400/1000A<600A 2.5%, 600A 3.0% Resistance: 400/4k/40k/400k/4M 1.0%, 40M 2.0% Frequency: 40Hz to 100kHz 0.1% (from test terminal), 40Hz to 400Hz 0.1% (from current clamp) MAX. diameter for conductor: 42mm Secondary injection molding case Dimension: 225mm x 86mm x 33mm Package not included user manual, please click here to download it! (Ac dc clamp meter electrical current voltage MS2138 was posted and is owned by: Rosanna Rice) |
