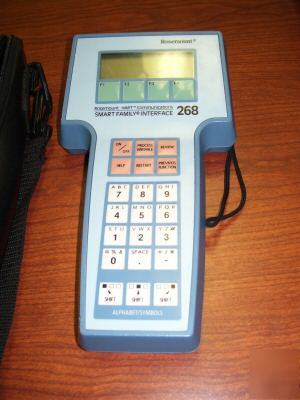

* Common interface for all Rosemount SMART FAMILY® instruments * Digital communications via the HART protocol without interruption of transmitter output signal * Microprocessor-based electronics * Large 4 line x 20 character display * Memory: Nonvolatile memory retains contents when unit is powered down, so long as the battery source is supplying power. * Power Supply: Five AA 1.5 V batteries (rechargeable optional) * Operating: 32 to 122 °F (0 to 50 °C) * Storage Limits: -4 to 158 °F (-20 to 70 °C) * Humidity Limits: 0 to 95% RH * Hazardous Locations Certifications: * CENELEC/BASEEFA Intrinsic Safety Certification * Factory Mutual (FM) Intrinsic Safety and Non-incendive Approval * Canadian Standards Association (CSA) Intrinsic Safety Approval * Standards Association of Australia (SAA) Intrinsic Safety Certification * Display: 4-line liquid crystal display with 20-character line width * Keyboard: Complete alphanumeric keyboard, six dedicated function keys, and four software-defined keys (Rosemount hart 268 hand held configurator/calibrator was posted and is owned by: Ivan Gordon) |
i_gordon@chicagopartsnetwork.com (Ivan Gordon) for more information.
