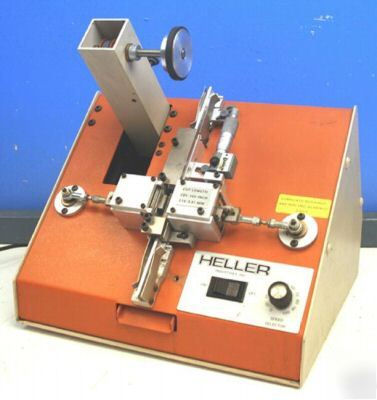

Heller D276-36A High Volume DIP Lead Processing System Machine (051206602150) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! I would like to take the time to thank From the bottom of my heart, thank you very much. You will never truly know how much it means to me. Heller D276-36A High Volume DIP Lead Processing System Machine * Electrical Requirements: 110 Volts AC, 50/60 Hz, 3 Amps * Cut Length: .085†– .150†inch (2.16mm – 3.81mm) * Powers up nicely and does seem to function * One system can process DIPs with .3†(7.6mm), .4†(10mm) and .6(15.2mm) lead centers * Reform leads inward for faster manual insertion * Reform leads outward for more efficient automatic machine insertion * Combine lead cutting and reforming operations in one unit * Change tooling quickly to produce different lead configurations * Adjustable speed for easier set up, maintenance and highest thru-put General Description (from manufacturer data sheet): * Now – with one Heller family of DIP lead processing machines you can accomplish almost any function you’ll ever need with ease. You’ll use entry level people to operate the system and to make any changeovers. Latest improvements are for faster, easier and more accurate DIP lead cutting and forming…for low or high volume with cost saving benefits for manual or automatic insertion…Higher thru-put-with a 250,000 leads per hour feed rate-the equivalent of 18,000 14-lead DIPs or 31,000 8-lead DIPs per hour-a rate that will outrun most operators! * Big advantage-advanced modular design that lets you combine interchangeable components to perform a multitude of functions. You can cut leads to any required length, reform leads inward or outward, even form stand-off or snap-in dimples. The dies that are available can increase the productivity of automatic IC insertion machines as well as improve the efficiency of manual DIP assembly operations. Spreading the leads outward prevents the DIPs from falling out of an automatic insertion head. Forming leads inward permits your assembly operators to substantially increase their insertion rates by simply dropping the DIPs into the PC holes. Machine lead cutting can also eliminate difficult post-solder lead trimming operations. Special systems are available to remove lead frames or shorting bars and to handle .9†(22.5mm) center DIPs. * You can have adjustable-length cut off dies to let you change the cutting length when fixed-length cut off tooling isn’t versatile enough for your job. In cases where a different processing function is needed, dies can be interchanged in less than a minute. Most important – lead processing is shockless, the cutting is burr free and precise tolerances are held. All lead cutting and forming operations are accomplished with no relative motion between DIPs and dies – no roller forming or cutting. This well proven, though somewhat more costly method assures no unwanted distortion to the leads and no damaging stress to the seal where the leads exit from the DIP body. * All machines come equipped with unique dual tracks that accommodate DIPs with leads on .3†(7.6) and .6†(15.2) centers. No adjustments are needed to switch over from one size to the other – only a simple die change. To process DIP’s on 4†(10) centers, merely replace the dual tracks and feed tube holders with a simple conversion kit and the appropriate die. All machine part locations are held by dowels pins and quick release clamps. It is very simple and swift, less than a couple of minutes to make the switch. * A positive drive system advances the DIPs through the lead processing dies by pushing on the bodies. Even DIPs with bent leads and irregular body sizes will have a safe, trouble-free passage through the machine. Lead cuttings are directed into a collection chute. Through grounding prevents damage to static-sensitive devices. * Driven by an energy efficient, variable speed motor, the Heller DIP Lead Processing Systems are lower in cost to operate. The machines are constructed of heavy duty elements that will yield many years of trouble free use. * Designed for entry level skills, your operating people will derive satisfaction and pride working with this well built, easy-to-use DIP lead processing system. * Size: 18.5†W x 14†D x 10†H (47cm x 36cm x 25cm) * Power Requirements: 100/120 Volts AC, 50/60 Hz, 3 Amps (Heller D276-36A high volume dip lead machine system was posted and is owned by: Laverne Gallegos) |
