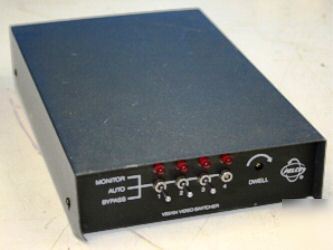

Pelco VS5104 Video Sequential Switcher * 4 Inputs (Terminating or Looping) * For use with Color or Black and White Cameras * Capable of operating on 12VDC for use in mobile applications * Inputs: Terminating; 75-ohm internal termination * Outputs: Monitor 1/2: 75-ohm source terminated (amplified) * Dwell: Adjustable from 1-70 seconds nominal * Frequency Response: Flat within 1 dB to 10 MHz * Maximum Signal Level: 2 Vp-p * Crosstalk: Better than -40 dB at 5.5 MHz * Input Voltage: 120VAC, 50/60Hz, or 230VAC, 50Hz to dedicated wall transformer) * Power Requirements for Transformer: 1.5VA (0.125 amp) at 12 volts RMS 15%, 50/60Hz from a dedicated isolated power source. * Construction: Chassis: Steel, Zinc Plated, Cover: Steel, Black polyester coat, Panel: Aluminum, black polyester powder coat, white silk screen * Dimensions: 1.77 H x 5.51 W x 8.81 D (4.50 x 14 x 22.38cm) * Unit Weight: 2.53 lbs (1.15kg) (Pelco VS5104 desktop sequential video switcher was posted and is owned by: Yvonne Farrell) |
yvonne.farrell@chicagopartsnetwork.com (Yvonne Farrell) for more information.
