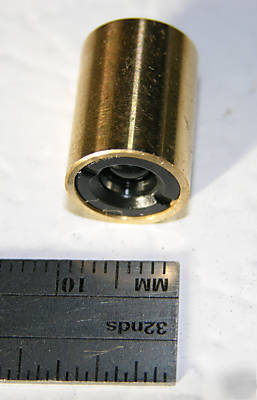

This is a NEW Laser Module Housing * 10.5 mm diameter X 14.5 mm long. * Ready for you to install a 5.6 mm diameter diode. * The same housing utilized in many of our APC Laser Diode Modules. * Add your diode and driver, or add one of our APC diodes and you are done! * Brass Housing. Includes high quality Plastic aspheric collimating lens. * For 405nm, use this rather than our glass module housing- lower loss at blu ray / blue - violet wavelengths. * Typically produces a 1.1 mrad divergent beam. Lens focal length = 8mm, 0.28 NA. AR Coated! * Optimized for red wavelengths, but can be used for IR and violet blue diodes too. * Adjustable Focus if needed, just turn to front ring with a screwdriver, or small tool. * Glass Lens version also available (at higher cost), just ask/ see our other listings. Glass Best for Red/ IR. * Please see the data sheet for more details:http:// /html/H-05-P.pdf Look above, under 'Meet the Seller' to see our other listed items We Sell You Tomorrow's Lasers Today... Available in Volume at a Discount. We supply Laser maufacturer's Worldwide. 2010 is our 13th Year. Put our experience and free engineering advice to work for your firm. Give us a call ! Made by an ISO 9001 manufacturer, in Taiwan. We were in the company's facility and their clean rooms in late June 2007.We are not a trading company, we only sell LASERS and related components. Easy to use, just press fit for diode into the rear. Diode we be flush with rear of housing. Price shown now $1 off! (Laser module housing 10.5MM - plastic adjustable lens was posted and is owned by: Ricky Russo) |
R_russo@chicagopartsnetwork.com (Ricky Russo) for more information.
