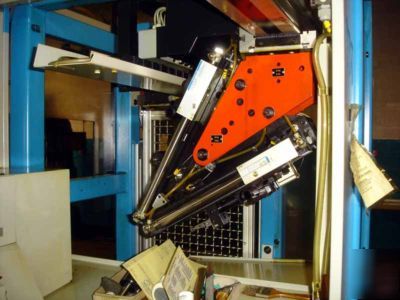

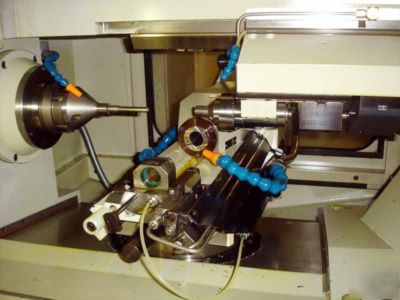

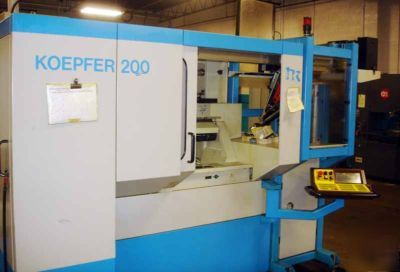

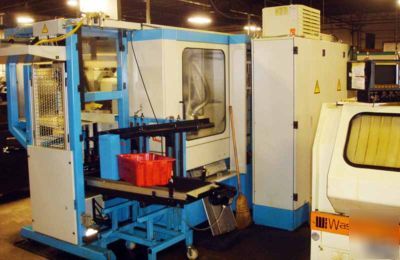

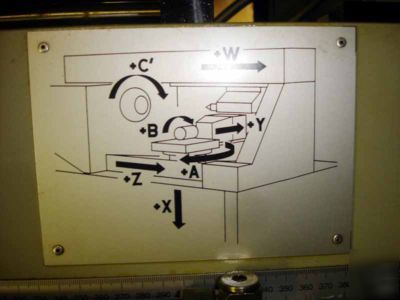

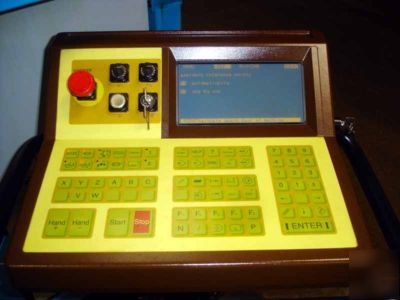

KOEPFER MODEL 200 7-AXIS CNC UNIVERSAL GEAR HOBBER Maximum pitch Module 3.0, 8 DP Maximum workpiece diameter with 32mm 1.250" hob and manual laoding 180mm (7.087") 1.250" hob and automatic loading 120mm (4.724") Maximum axial travel 200mm (7.874") Maximum workpiece length manual loaded 350mm (13.780") Maximum workpiece length automatic loaded 300mm (11.811") Center distance workpiece to cutter, minimum 10mm (0.394") Center distance workpiece to cutter, maximum 110mm (4.331") Universal hob head with CNC shifting 400-3000 RPM Maximum cutter diameter 80mm (3.150") Maximum cutter length 130mm(5.118") Maximum cutter shift 100mm(3.937") Koepfer/Siemens CNC Control. Automatic Loading/Unloading. Automatic Skiving System. Automatic Deburring. Crowning. CNC Controlled: Multiple Cut Cycles, Dwell For Worm Wheels, Blind Splines, Etc.., Electronic Differential For Hobbing Helical Gears, Hob Shifting. Universal Hob Slide. Automatic Clamping For Hob Arbor. Programmable High Pressure Tailstock. Collect Chuck. Magnetic Chip Conveyor. Coolant. Full Enclosure. (Koepfer 200 7-axis cnc universal gear hobber-low hours was posted and is owned by: Delores Lloyd) |
Delores_lloyd@chicagopartsnetwork.com (Delores Lloyd)
for more information.
