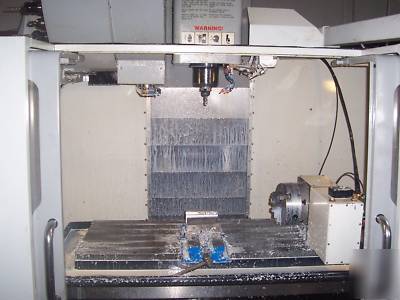

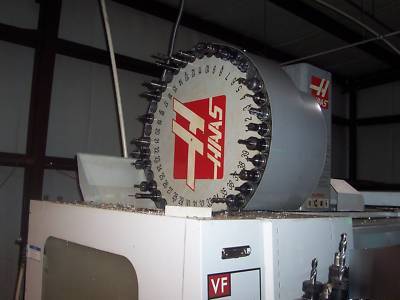

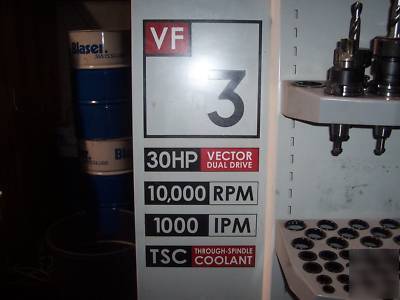

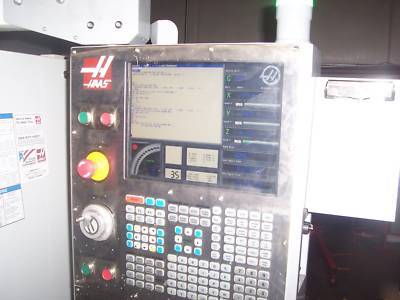

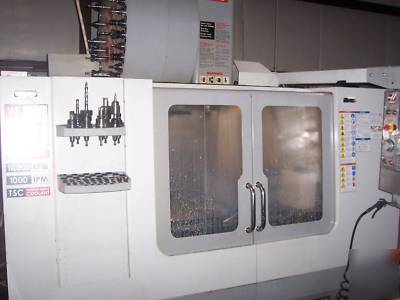

below is the quote for the options on a new HAAS from HAAS themselves with the options included with my machine which only has 1400 hours on it. Per our conversation, here is an up to date quote on your VF-3 with current options, any rotary and rotary options would be added to the machine total. Vertical Machining Center; 40" x 20" x 25" (1016 x 508 x 635 mm), 40 taper, 20 hp (14.9 kW) vector drive, 7500 rpm, 20-station carousel tool changer, 1000 ipm (25.4 m/min) rapids, 1 MB program memory, 15" color LCD monitor, USB port, rigid tapping and 55-gallon (208 liter) flood coolant system. Through-Spindle Coolant, 300 psi (21 bar) High-Torque 10,000-rpm Spindle, 40 taper, 30 hp (22.4 kW) vector drive; requires GB2 gearbox option Side-Mount Tool Changer, 40 taper, 40+1 tools 4th-Axis Drive and Wiring for brushless-type rotary tables High-Speed Machining with Look-Ahead Visual Quick Code Programming System 4th axis DC to AC Conversion Box Rotary Tables Available with Machine; 160 mm (6.3") Servo Rotary Table with wraparound motor. Requires Haas mill with 4th-axis drive for full 4th-axis operation 210 mm (8.3") Servo Rotary Table. Requires Haas mill with 4th-axis drive for full 4th-axis operation (Haas VF3 cnc mill hrt 210 4TH axis included was posted and is owned by: Denise Golden) |
D-golden@chicagopartsnetwork.com (Denise Golden) for more information.
