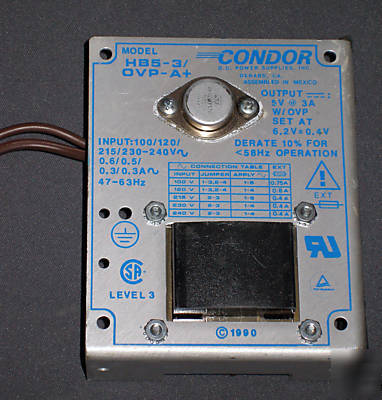

Condor Power-One 5VDC 3.0Amps Power supply HB5-3/OVP-A+ Lightly used unit.... Guaranteed to be in working condition upon receipt. See specifications below to verify compatibility with your system. For more information or specs see the following link: http:// /Images/Products/Datasheets/BM/CONDOR/744-0314.PDF AC Input: 100/120/220/240 VAC +10%, 13%. 47-63 Hz. Tolerance for 230 VAC operation is +15%, 10%. Derate output current 10% for 50 Hz operation. Adjustment Range: 5% minimum except HAD Series. Line Regulation: 0.05% for a 10% change. Load Regulation: 0.05% for a 50% load change. Output Ripple: 3 mV + 0.05% of output voltage peak to peak maximum. All 3-terminal regulator outputs: 3 mV + 0.2% peak to peak maximum. Transient Response: 50 microseconds for 50% load change. Short Circuit and Overload Protection: Automatic current limit/foldback. Overvoltage Protection: Built-in on 5 V models, set at 6.2 V 0.4 V. Other models use optional overvoltage protection. Remote Sensing: On all models except HA and HTAA; open sense lead protection built-in. Stability: 0.05% for 24 hours after warm up. Temperature Rating: 0 C to 50 C, full rated, derated linearly to 40% at 70 C. Temperature Coefficient: 0.01%/ C maximum. Efficiency: 5 V units 45%; 12 V and 15 V units 55%; 20 V and 24 V units 60%. * UL1950 Approved without D3 Deviation * World-Wide AC Input Ranges * World-Wide Safety Standards * Industry Standard Packages * VDE/IEC Transformer Construction * 2-Hour Burn-In with Cycling * Capacitors Have Highest C/V and Ripple Current Ratings in Industry * Anti-Latchup Circuit on Duals and Triples * MTBF of Over 200,000 Hours Per MIL Handbook 217D on Most Units Commercial UL CSA TUV IEC Approved to UL1950, CSA C22.2 No. 950 L3, TUV Certified to EN60950 Feel free to contact me with any questions. DotCom Equipment strives to make sure you are completely happy with your purchase. Our goal is to offer you quality products with fast & friendly service. Item must be returned in its original condition and original packaging within 7 days of delivery for a full refund. It Is Our Guarantee That You Receive The Exact Item You Purchased. If There Is A Problem With Your Order, Please Contact Us First. We Value Your Patronage, Your Satisfaction Is Important To Us! (Condor power-one 5VDC 3.0AMPS power supply HB5-3/ovp-a+ was posted and is owned by: Dolly Riddle) |
