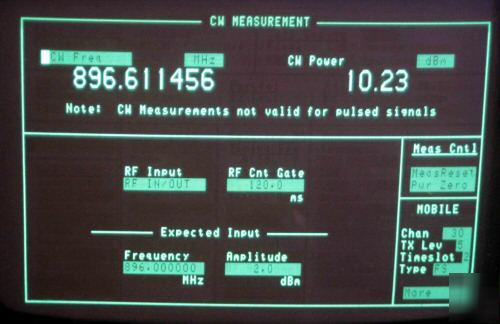

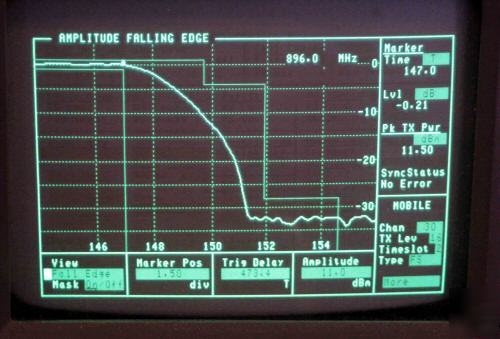

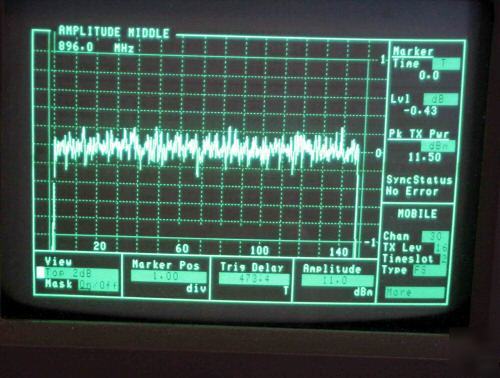

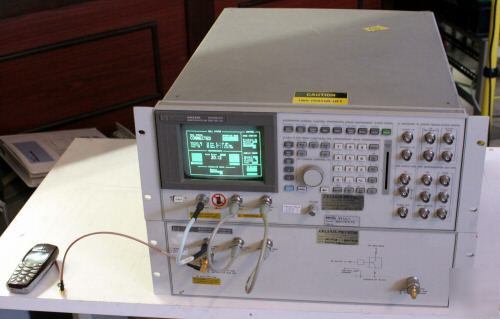

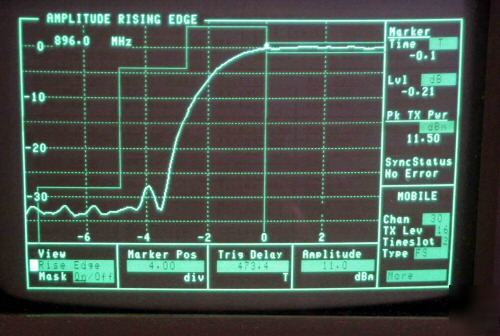

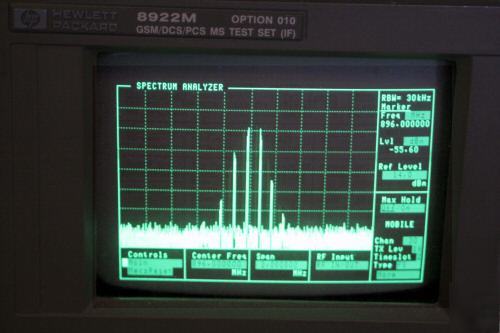

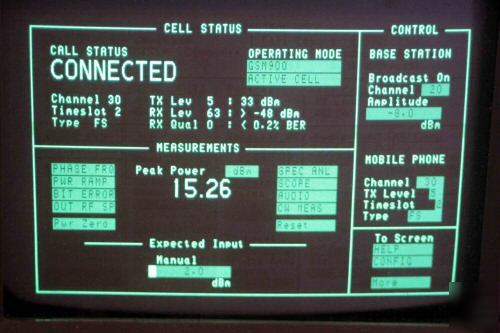

Up for sale is a HP8922M (opt 006, 010) test set with a HP 83220E interface unit. This test set emulates a GSM base station for testing of GSM mobile radios and can be used in volume manufacturing, where speed, accuracy and repeatability are important factors to minimizing production costs. Flexible and easy to use; one button call set-up from power on. Makes fast, accurate and repeatable measurements. GSM Phase II compatible (including fast burst BER measurements and enhanced full-rate speech). E-GSM and dual-band assignment capability. Includes electronic attenuators for increased reliability and fast test times. Tool kit of instruments including spectrum and audio analyzers. HP-IB. The 8922M contains a complete set of instrumentation for testing the RF sections of GSM radios. In addition to the frequency agile 0.3 GMSK RF generator, the RF analyzer has a frequency agile local oscillator, a coherent data demodulator, a pulse demodulator, a FM demodulator, a DSP based analyzer for phase and frequency error, a synthesized spectrum analyzer, and a pulsed power meter. Additionally, the 8922M contains general purpose tools useful for module test, troubleshooting, and debugging activities. Naturally, the RF generator, Spectrum Analyzer, CW Measurement functions and many other things can be used for work with normal analog signals. Frequency Range 10 MHz to 1000 MHz 0.3 GMSK Modulation External clock and data Pulse Modulation Normal and 30dB Frequency Range 10 MHz to 1000 MHz Frequency Resolution 1 Hz (100 kHz in hop mode) Coherent Data Demodulation 0.3 GMSK at 270.833 Kb/s, 1 timeslot/frame Global Method rms and peak phase error/frequency error Amplitude Envelope Rise, fall, and burst flatness over useful bits Peak Transmitter Power -5 dBm to 41 dBm Spectrum Analyzer (Option 006) Frequency Range 10 MHz to 1000 MHz Frequency Accuracy and Stability Same as timebase Other Features External trigger, marker Frequency Range 2 Hz to 50 kHz Sweep Times 10us to 100 ms in 1,2,5,10 steps Frequency Range 20 Hz to 400 kHz AC Voltage Range: 0 to 30 Vrms DC Voltage Range: 100 mV to 42 V Output Level Range 0.1 mVrms to 4 Vrms Comes with manuals on CD and all the cables except the power cord and the handset cable in the picture (it's just a self-made coax loop antenna :-)) . A Test SIM Card will be included for no additional charge as long as there is stock. (Hp 8922M opt 006/010 w/hp 83220E gsm/dcs/pcs test set was posted and is owned by: Diane Juarez) |
Diane.juarez@chicagopartsnetwork.com (Diane Juarez) for more information.
