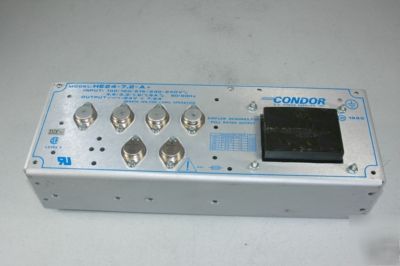

Condor HE24-7.2-A+ 24VDC 7.2A 172.8W Power Supply This item has been removed from a working environment and tested by a qualified technician. Very low usage hours. You will received this item as pictured. No accessories other than those mentioned or pictured in the listing will be included. AC Input: 100/120/220/240 VAC +10%, 13%. 47-63 Hz. Tolerance for 230 VAC operation is +15%, 10%. Derate output current 10% for 50 Hz operation. Adjustment Range: 5% minimum except HAD Series. Line Regulation: 0.05% for a 10% change. Load Regulation: 0.05% for a 50% load change. Output Ripple: 3 mV + 0.05% of output voltage peak to peak maximum. All 3-terminal regulator outputs: 3 mV + 0.2% peak to peak maximum. Transient Response: 50 microseconds for 50% load change. Short Circuit and Overload Protection: Automatic current limit/foldback. Overvoltage Protection: Built-in on 5 V models, set at 6.2 V 0.4 V. Other models use optional overvoltage protection. Remote Sensing: On all models except HA and HTAA; open sense lead protection built-in. Stability: 0.05% for 24 hours after warm up. Temperature Rating: 0 C to 50 C, full rated, derated linearly to 40% at 70 C. Temperature Coefficient: 0.01%/ C maximum. Efficiency: 5 V units 45%; 12 V and 15 V units 55%; 20 V and 24 V units 60%. * UL1950 Approved without D3 Deviation * World-Wide AC Input Ranges * World-Wide Safety Standards * Industry Standard Packages * VDE/IEC Transformer Construction * 2-Hour Burn-In with Cycling * Capacitors Have Highest C/V and Ripple Current Ratings in Industry * Anti-Latchup Circuit on Duals and Triples * MTBF of Over 200,000 Hours Per MIL Handbook 217D on Most Units WARRANTY: ALL SALES ARE FINAL: RETURNS OF PRODUCT, OTHER THAN WITH DEFECT, ARE SUBJECT TO A 20% RESTOCKING FEE. * PLEASE INSTALL OR TEST ITEMS PROMPTLY UPON RECEIPT. (Condor HE24-7.2-a+ 24VDC 7.2A 172.8W power supply was posted and is owned by: Colleen Hardy) |
