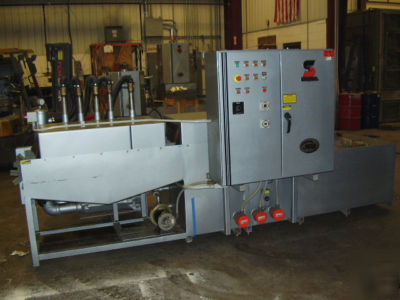

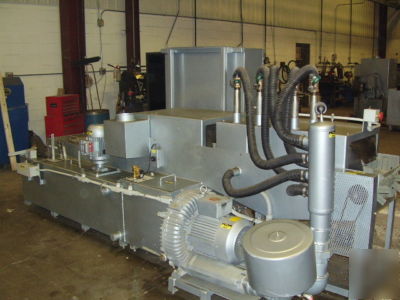

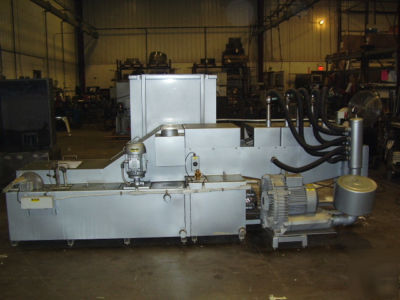

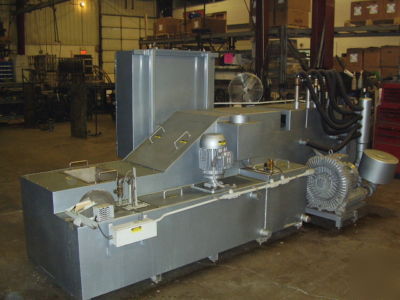

JRI ICS-3000 Pass Thru Washer, Wash, RInse, Blow-OFF Approximate overall dimensions: 139 long X 64 wide X 62 tall (less exhaust and options) 12 Wide X 12 Long (funneled opening) X 6 Tall 18 Wide, plastic belt with 3 tall flights and 3 side guides. The belt has a 14 usable belt area between the side guides. The belt is rated for 170 degrees F continuous with an intermittent, short term, temperature exposures of 200 degrees F possible (weight of parts and speed of belt will have a bearing on this temperature). Max load of conveyor is 150 lbs. evenly distributed. Variable speed, Direct Current (DC). T he operation speed is 1 to 12 ft./min. with current sprocket-to-sprocket ratio. Lift off hatches to facilitate easier cleaning of the tank with oversized stainless steel lift-off hatch type doors. The submerged cleaning area will have drilled manifolds placed from below the belt only, while the inclined cleaning area will have spray nozzles placed from above and below the belt for spray cleaning. One (1) 1.5 HP, 24 GPM @ 40 PSI Lift off hatch to facilitate easier cleaning of the tank. The rinse zone will have spray nozzles placed from above the belt for rinsing the parts. 15HP direct drive regenerative blower with supply filter and gauges. The approximate performance of this blower is 600 CFM @ 50 inches of water column. Call Benchmark with any questions at 918-234-TOOLVisit us online at Built and reconditioned by JRI Industries (Jri ics-3000 conveyor passthru parts washer stainless was posted and is owned by: Lester Hall) |
L.hall@chicagopartsnetwork.com (Lester Hall) for more information.
