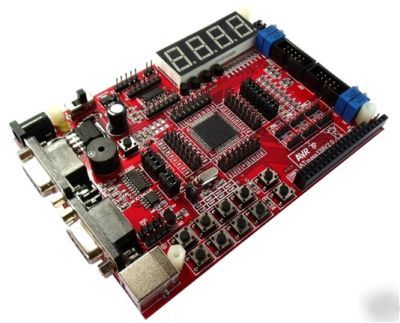

ISP 5x2 pin connector for in-circuit programming with AVR Programmers . JTAG 5x2 pin connector for in-circuit programming and Simulating. 7805 and filtering capacitors.Two kinds of power supply: 6V-12V external switching power supply and 5.0V USB power supply System power supply selection:5V/3.3V Quartz crystal oscillator circuit 1-16Mhz Status LED connected to I/O PC port via removable jumper Two RS232 DB-9 female connectors (USART1 + USART2) ( RS232 MAX232 interface circuit with Tx, Rx, signals port.) 2 External Interrupts:int0 and int1 Seven darlington arrays chip ULN2003A DC motor interface (ULN2003A) Step motor interface (ULN2003A) ADC0 &ADC1 potentionmeter LCD1602 + LCD12864 interface 1. ATMEGA128 Development Board * 1 ( included 1pc ATMEGA16-8PU Chip ) 4. CD ROM(AVR Studio soft; Chip's datasheet; Schematic..) *1 (STK128+ atmel avr ATMEGA128 -16AU development board pro was posted and is owned by: Arlene King) |
