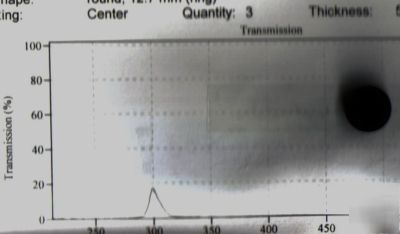

This high end precision optical interference filter is designed to efficiently collect the emission of Mercury centered at 301nm, from the continuium of a low pressure Hg source, and has a free spectral range from Deep UV, to Far IR. The filter specifications are as follows: Center Wavelength 301nm+-2nm, Half Band Width 10+-2nm, Blocking Min OD 4, AVG OD 5 UV to Far IR. Transmission at peak is about 10-20%, Size is 12.5mm round, Mounted in anodized Al ring. (Optical filter 301BP10 12.5 mm mercury was posted and is owned by: Terrence Noble) |
