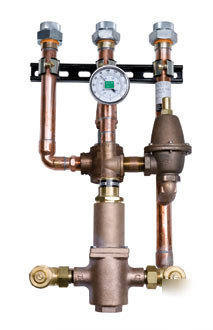

Model TWBS.SH is a prepackaged, fully engineered and tested system for mixing hot and cold water to provide tempered water up to 40 gpm for emergency shower and eyewashes (Pat.# 5,350,112). It consists of a thermostatic mixing valve, a high temperature limit valve, a bypass valve, and an outlet temperature gauge. * Unit is constructed of bronze, brass, copper and stainless steel. Ideal for areas where supply water temperature fall below 60 F (15 C). * Unit contains no electrical components; thus suitable for combustible atmospheres. * Maximum inlet pressure: 125 psi. Maximum inlet temperature: 180 F (82 C). Recommended inlet temperature: 140 F (60 C). * Pressure requirements: 60 psi to adequately supply water for safety shower. * Inlet and outlet: 1-1/4" IPS. Dielectric inlet and outlet unions provided. (New haws #twbs.sh safety valve for hot/cold water [ ] was posted and is owned by: Frankie Hood) |
