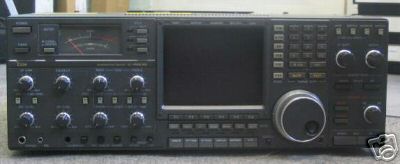

ICOM R-9000 Wide Band Communications Receiver The ICOM R9000 is an all-mode, wideband receiver that continuously covers a frequency range of 100 kHz to 1999.8 MHz. The most visible of the radio's many advanced features is the built-in multifunction 5 inch CRT display. Receive frequencies, modes and additional useful data are displayed for your operating convenience. The CRT functions as a spectrum scope to show you, at a glance, the relative signal strengths of nearby receive frequencies. The span of the spectrum scope can be selected for ±25, ±50 or ±100 kHz according to your needs. The screen can also display the contents of 10 memories at once, and can be scrolled to display other memories. The CRT can also be used as a display device to monitor RTTY or packet via an ASCII RS-232 input port (external data converter required). The R9000 boasts a total of 1000 memories (ten banks of 100) store frequencies, mode, filter width and tuning step increments. You can use different memory banks according to station type, frequency ranges or whatever your preference. By using the memory list screen, many more convenient functions are provided: up to eight character notes for your reference; and the advanced super convenient memory editor function easily moves, copies and deletes the memory contents. Tuning steps: 10 Hz, 100 Hz, 1 kHz, 5 kHz, 9 kHz, 10 kHz, 12.5 kHz, 20 kHz, 25 kHz and 100 kHz. Frequency Range ....... 0.1-1999.8 MHz Power ................. 110-120 VAC/240V Antenna Impedance ..... 50 ohm unbalanced Selectivity (-6dB) .... AM 6.0 kHz Sensitivity ........... .16 µV 1.6-30 MHz Antenna Jacks.......... .1-30 MHz SO-239 .1-30 MHz RCA (HF Antenna Two) Audio Output .......... 2.5 Watts 4 - 8 Ohms. Dimensions ............ 16.8 x 6 x 14.375 inches Weight ................ 44.2 Lbs. (20 kg) * Used, but in good cosmetic condition. * The units have been fully refurbished.... * Top/Bottom cover have been professional resprayed * Fully checked over and soak tested for 2-3 days * Please note there can be a long delivery time on these units (2-3Weeks) * No wear marks on the front panel or no missing control knobs/buttons. * Supplied with operator/service manuals. * America & Canada: GBP 180.00 * Far East & Australia: GBP 250.00 * Please note that these price are on estimation and if you are interested in this item please contact me with your full postage address and ill find you a more favourable price. Please note VAT will be added to all sales where necessary (Icom r-9000 wide band communications receiver was posted and is owned by: Rosalinda Swanson) |
