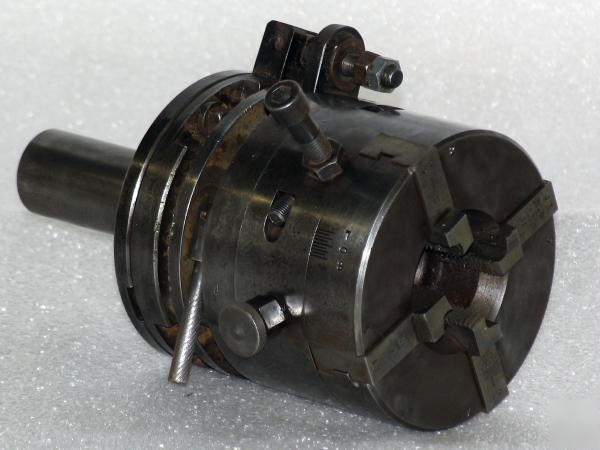

Geometric 1-1/4" DDSA Stationary Self-Opening Die Head Stationary self-opening heavy duty die head with floating trip and aligning shank adjustment. This die head is ideal for heavy duty turret lathes but is not limited to this use. Capacity, Straight Threads - Diameters: 1/2" to 1-1/4" Capacity, Straight Threads - Length: 4-3/8" Capacity, Straight Thread - Coarsest Pitch: 7 Capacity, Standard Pipe Threads: 1/4" - 1 Diameter of Die Head Body: 4-15/16" Length of Die Head Body: 5-5/16" (Geometric 1-1/4" ddsa stationary self-opening die head was posted and is owned by: Jessie Bright) |
