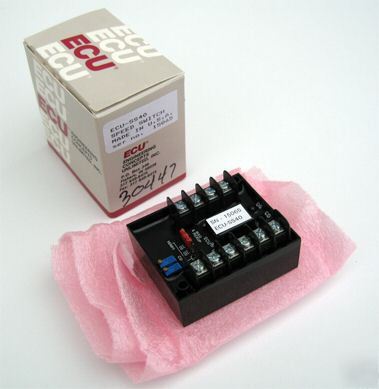

The ECU-SS40 is a state of the art electronic speed switch. It is designed for rugged system use and easy interface. The SS40 is a small and compact speed switch but is packed full of useful features. * Wide speed sensing range from 500 to 9500 Hertz * High current output for solenoid control * Epoxy encapsulated module for excellent field reliability * Wide temperature range -40C to +85C * LEDS for Crank Disconnect and Overspeed * Programmable for latching or non-latching output ECU -SS40 EASY TO USE VERIFY MODE The ECU-SS40 speed switch features a Verify Mode. This feature is useful because it reduces the engine stress normally associated with the setting of Overspeed trip points. When jumpered together, the verify pins lower the Overspeed and Crank Disconnect trip points by approximately 13%. ECU -SS40 EASY TO USE PROGRAMMABLE RELAY LATCHING The ECU-SS40 speed switch allows the user to individually program the relays to stay latched until the power is removed or automatically reset when the engine stops. If the Overspeed and Crank Disconnect jumpers are installed, power must be removed from the speed switch to reset the relays. When the Overspeed and Crank Disconnect jumpers are removed, the relays reset when the engine stops. (Electronic speed switch gas & diesel engines ecs SS40 was posted and is owned by: Marcie Sullivan) |
