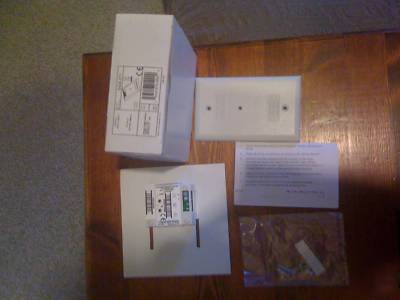

New EST Edwards Siga-CT1 Single Input Module. New In Box. The Single Input Module SIGA-CT1, is a component of the Signature Series System. The SIGA-CT1 is an analog addressable device used to connect a Class B normally-open Alarm, Supervisory, or Monitor type dry contact Initiating Device Circuit (IDC) to a Signature Loop Controller. One (1) Device is required. Models SIGA-CT1 Features - MULTIPLE APPLICATIONS Including Alarm, Alarm with delayed latching (retard) for waterflow applications, Supervisory, and Monitor. The installer selects one of four (4) personality codes to be downloaded to the module through the loop controller. n PLUG-IN (UIO) OR STANDARD 1-GANG MOUNT UIO versions allow quick installation where multiple modules are required. The 1-gang mount version is ideal for remote locations that require a single module. - AUTOMATIC DEVICE MAPPING Signature modules transmit information to the loop controller regarding their circuit locations with respect to other Signature devices on the wire loop. - ELECTRONIC ADDRESSING Programmable addresses are downloaded from the loop controller, a PC, or the SIGA-PRO Signature Program/ Service Tool. There are no switches or dials to set. - INTELLIGENT DEVICE WITH MICROPROCESSOR All decisions are made at the module to allow lower communication speed with substantially improved control panel response time and less sensitivity to line noise and loop wiring properties; twisted or shielded wire is not required. - NON-VOLATILE MEMORY Permanently stores serial number, type of device, and job number. Automatically updates historic information including hours of operation, last maintenance date, number of alarms and troubles, and time and date of last alarm. - STAND-ALONE OPERATION The module makes decisions and inputs an alarm from initiating devices connected to it even if the loop controller s polling interrogation stops. - DESIGNED TO ISO 9001 STANDARDS (Edwards est siga-CT1 / SIGACT1 single input module was posted and is owned by: Kathie Deleon) |
