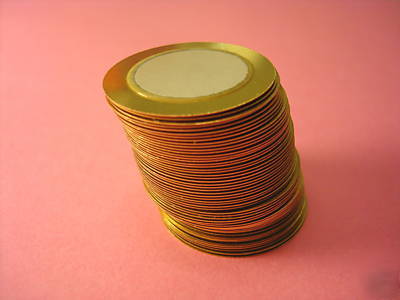

Fifty piece pack of 27mm wide brass piezoelectric discs. These are perfect for using as touch-sensors, electronic drum triggers, buzzers, or making your own contact mics. To use, simply solder positive to the center and ground to the brass disc. The actual piezoelectric material in the center of the brass resonating disc measures approx. 20mm wide. Profile is approx. 0.42mm thick. Resonant Frequency: 4.0 0.5 KHz Resonant Resistance: 500 max. Capacitance: 25 000pF 30% at 100Hz Operating Temperature: -20 to +50 C Storage Temperature: -20 to +60 C (50 pcs. 27MM piezo discs / element / transducer / diy was posted and is owned by: Kathrine Kirkland) |
