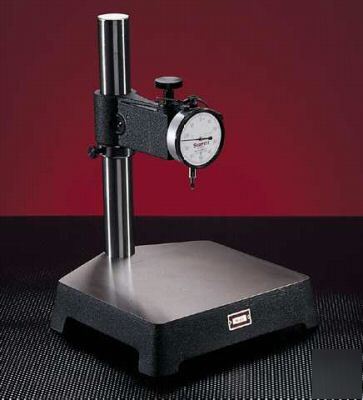

For Purchase: Brand New Starrett Series 653 Dial Comparator without Indicator These bench-type comparator gages are ruggedly built for in-process and final inspection work. The dial indicator can be adjusted vertically and locked in any position. A sliding ring with locking screw below the beam permits swinging the indicator to either side. The ring also acts as a safety device, preventing the beam from accidentally dropping. There is a fine adjustment on the beam for final indicator setting. The hand lifting lever on the indicator raises the spindle and releases it to contact the work. A left hand lever is furnished unless specified otherwise. Both gages have a maximum vertical capacity of 9 1/4" (235 mm) and a throat depth of 5" (125 mm) and a vertical indicator fine adjustment of up to 1/2" (12.7 mm). Post diameter is 1 1/2". No. 653 Series have a ribbed, precision ground cast iron base measuring approximately 8" x 9" (200 x 225 mm). No. 653G Series have a Starrett Grade A, Crystal Pink Granite base, measuring 8" x 12" x 2" (200 x 300 x 50 mm). Base is finished to an overall tolerance of .0001" (0.0025 mm). Be sure to add us to your favorites list! (Starrett dial comparator series 653 was posted and is owned by: Kyle Espinoza) |
kyle_espinoza@chicagopartsnetwork.com (Kyle Espinoza) for more information.
