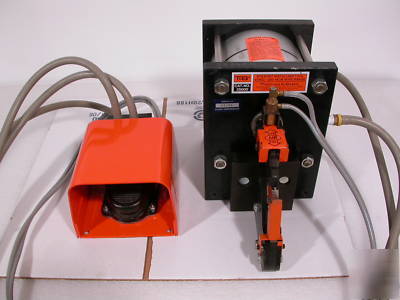

Thomas Betts STA-KON Installation Tool/ CAT. NO. 25000. 8 AWG-250 MCM wire range. Superb cosmetic and working condition. pdf information link http:// /en/catalogues/online/industrial_MRO/pdf/c1/3stakon_ENG_1p.pdf scroll down a bit on the pdf. to see the specs. This compact heavy duty air tool installs nylon and TEFZEL terminals on wire sizes from 8 AWG to 250 MCM; non-insulated styles are also installed just as quickly and dependably; to crimp a terminal, you simply insert the stripped wire into the terminal barrel, position it in the crimping nest, and depress the foot pedal actuating the crimping dies it s that easy The tool accepts a full range of interchangeable dies, the same as used in the TBM6 or 6S tools. To install the dies, simply pull the spring-loaded pin and remove the indentor die. Then, flex the retaining spring and remove the die nest. Mechanism Means Quality Connections mechanism senses inlet air pressure, and if insufficient is designed to prevent the tool from cycling. Thus you avoid undercrimping. An 85- 90 psi air pressure source is required. Safety Features Increase Productivity, Reduce Downtime Safety features include a guard over the die area, an air shutdown switch activated by a slight push with the finger, and an enclosed foot pedal designed to prevent unwanted tool operation. In additiion, the tool may be bench mounted for stability and control. For convenience when crimping large size terminals on heavy wire, the head assembly may overhang the workbench. (Thomas betts sta-kon installation tool/ cat. no. 25000 was posted and is owned by: Hattie Rivers) |
