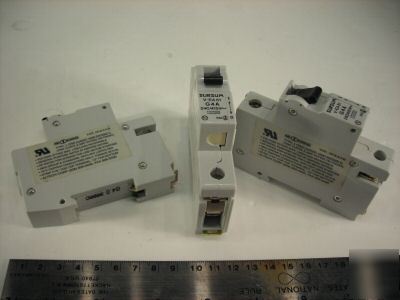

SURSUM 4A CIRCUIT BREAKER - DIN RAIL 100% Satisfaction Guarantee! See our great Electronic Equipment and Supplies. It’s application is general industrial, including motors, some transformers, solenoids, control circuits, lighting and wiring. Meets the US trip norms with relatively short thermal trip delay and high magnetic trip point. * Condition: One part, new in bag. Technical Specifications. Voltage Rating: 480Y/277 VAC (480 VAC phase-to-phase, 277 VAC phase-to-ground/neutral). Interrupting Capacity: 10 kA with UL® listed RK5 back-up fuse or MCCB. Electrical/Mechanical Endurance: 10,000 ON/OFF operations. Calibration Temperature: 40°C (104°F). Terminal Tightening Torque: 20 in.-lb. International Approvals: For various trip characteristics and rated currents, Germanischer Lloyd, SEV, SEMKO, NEMKO, etc. VDE approved on up to 25 A on B, C, and D-trip. CE mark is standard. Thermal one-hour trip zone 1.05-1.35 times rated current (RC): magnetic 100 ms trip boundary 8 to 10 times RC. Proceeds from this sale will send me to college - and that's great. Because a mind is a terrible thing to waste. * University, Government PO's are welcome. (Sursum v-EA51 G4A circuit breaker - din mount minature was posted and is owned by: Terrie Rice) |
