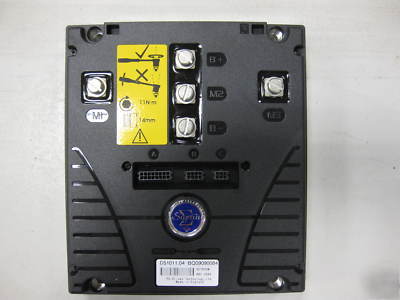

up for grabs is a PG Drives sigmadrive 80 volt 350 amp controller. It is being sold as "used" it was installed, but never actually used. This controller would be a nice upgrade , or a great start on your EV project! Absolute operating voltage: 43-98 volts Current: 350 amps for 60 seconds, 120 amps continuous for an hour * 7 off low impedance digital inputs * 3 off high resolution analogue inputs * 3 off protected contactor drivers * Short circuit and open circuit contactor detect * Thermal current limit compensation * Electromagnetic brake control * Emergency reverse / Belly button * Regenerative and plug braking * Braking proportional to accelerator position * Brake pedal analogue input mode * Under and over-voltage protection * Throttle wire-off detection * Easy dual traction control via 2 controllers * 6 Pump speeds with additive, priority and compensation * Independent power steer speed and compensation * Multiple hardware and software failsafe systems and watchdog * Power On and Trip diagnostic LED indicators * Controller WILL need programming to work with your motor. PG does offer a hand held programmer which would allow you to make any changes necessary. (Pg drives sigmadrive 80 volt dc 350 amp controller was posted and is owned by: Francisco Ware) |
f-ware@chicagopartsnetwork.com (Francisco Ware)
for more information.
