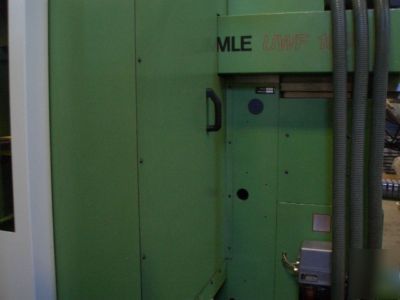

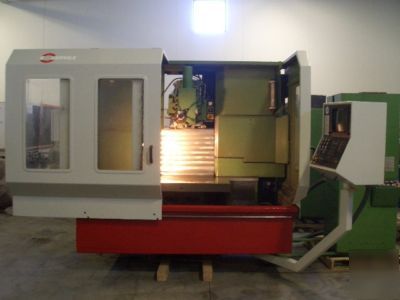

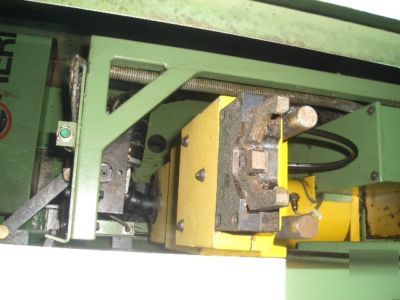

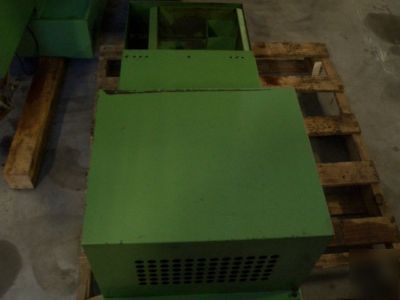

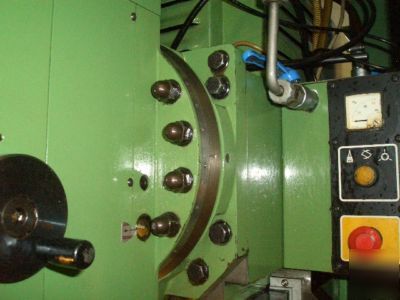

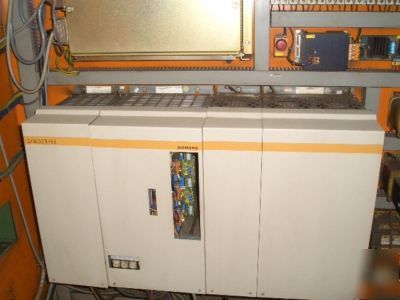

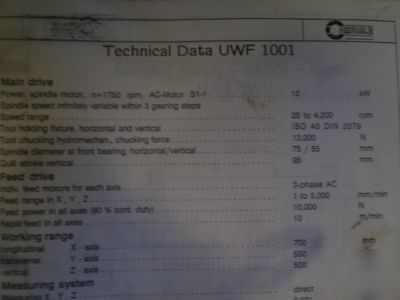

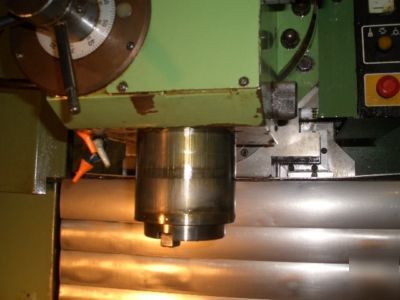

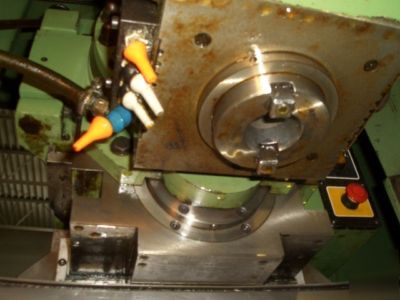

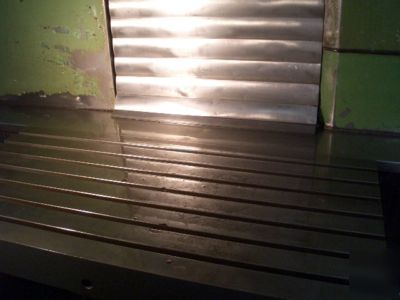

One ( 1 ) Used 3 Axis HERMLE Model UWF 1001-Heidenhain TNC 355 Fully 3 Axis CNC VERTICAL & HORIZONTAL 40 Taper - Spindle. CNC 3 x Hermle milling machine. HEIDENHAIN TNC 355 All AC DRIVES Axis motors and Spindle Motor. Heidenhain Glass Scales in all 3 Axis. Specifications: X- Travel 700mm Y-travel 550mm Z-travel 500mm RPM 4200 Taper # 40, Control Heidenhain TNC-355 Equipped With: Heidenhain TNC Control - TNC355 RS 232 Coolant Tank Transformer build - in.(220/240/414/480/etc.mutlitap. AC Motors Heidenhain Glass scales in X, Y, Z Axis Automatic Tool Clamping. Tool-changer Vertical Books with the machine Parameter list with the machine. Please Note this machine is not under Power,it's in a Wahrehouse in WI. Please pay with wire transfer,within 5 days or machine will be relisted Loading charges will be extra $ 970.- open Truck. or need to pay monthly rent $ 255.- per month. The Machine weights approx:10,000Lbs. Machine: approx: W 93"x D 96" x H 88" Electro Cabine: W 55" x D 21" x H 71" Water -Tank: W 49" x D 20" x H15" Machine has power up problems. PLUS STATE & LOCAL TAXES, IF APPLICABLE AS INSPECTED.SPECIFICATIONS IS SUBJECT TO VERIFICATIONS (Catalog specification.) (Hermle,universal milling cnc 3 axis,hermle,heidenhain was posted and is owned by: Johnny Joseph) |
Johnny_joseph@chicagopartsnetwork.com (Johnny Joseph)
for more information.
