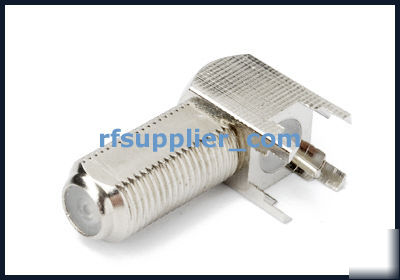

F female right angle with PCB connector Temp.range.....................-40 +60 C Vibration.........................100m/s2 (10 500Hz) Impedanec.......................75 Frequency Range..............DC 1GHz Working Voltage...............170V max Withstand Voltage........... 500V rms Center Contact................. 10 m Outer Contact.................. 5 m Insulation resistance......... 1000 M VSWR Straight................. 1.20 Right angle ...................... 1.30 Durability(mating)............. 500 (cycles) shell .......................brass ................................nickel plated contact pin ........... ..brass ................................nickel plated elastic contact.......... beryllium or tin brass ....... .gold or silver plated insulator...................PTFE or PE........................gold or silver plated crimping suite...........copper alloy ........................nickel or gold plated O-ring sealing ..........6146 silastic..... ..................nickel or gold plated (F female right angle with pcb connector was posted and is owned by: Adriana Blankenship) |
a_blankenship@chicagopartsnetwork.com (Adriana Blankenship) for more information.
