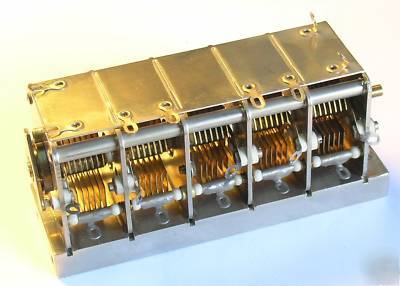

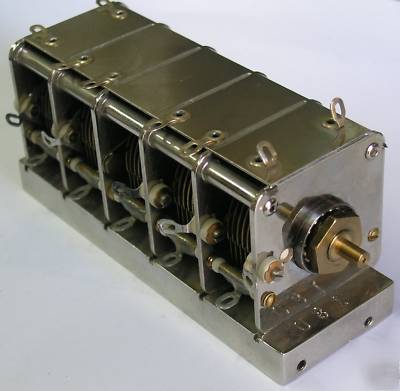

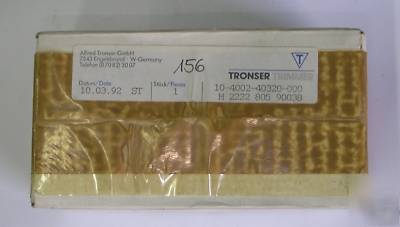

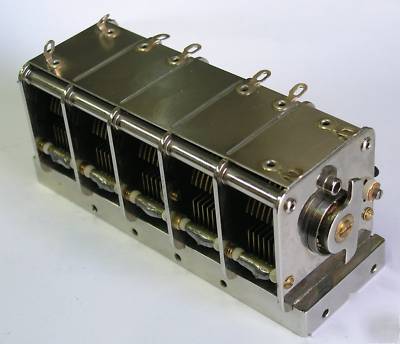

High quality ,5 gang 4~73 pF per section variable air capacitor made by Tronser(Germany) for a British top quality mil/commercial communications units manufacturer.The unit is totaly chrome plated(!),except the rotor/stator plates for obvious functioning reasons(bare brass).The baseplate is a solid 10mm thick solid brass 37X114mm.Dimentions 113(L),40(W),49(H)mm.Plate spacing:1,25MM,rotor plate thickness:0,52mm.Rotor balanced on heavy duty ballbearings,provision for rotation stop.Shaft thickness 4mm,length 7mm.All rotor sections isolated from frame and shaft and each other,all stator sections isolated as well from frame and between each other.In original packaging.
(5 gang air variable capacitor was posted and is owned by: Caroline Albert) |
c_albert@chicagopartsnetwork.com (Caroline Albert) for more information.
